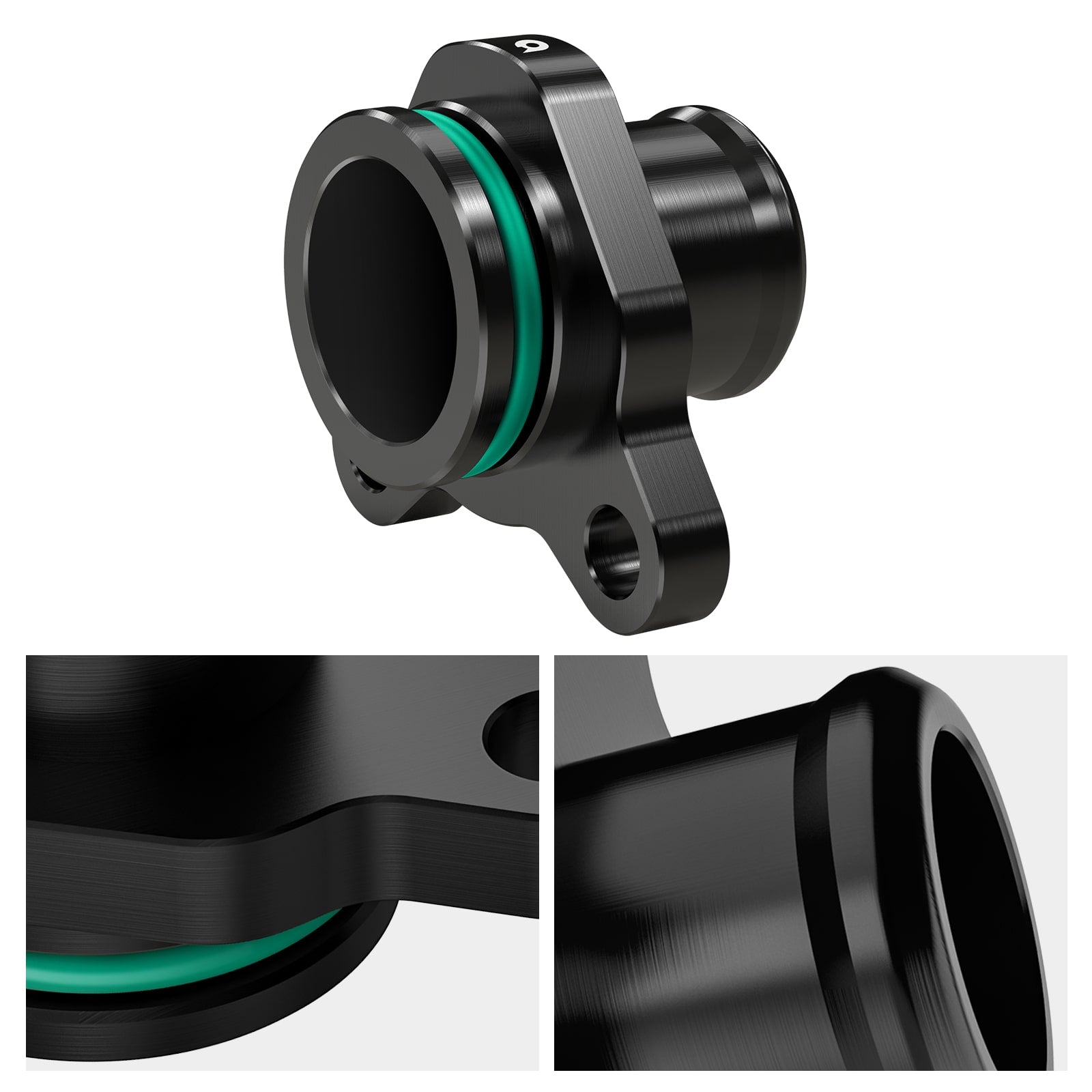

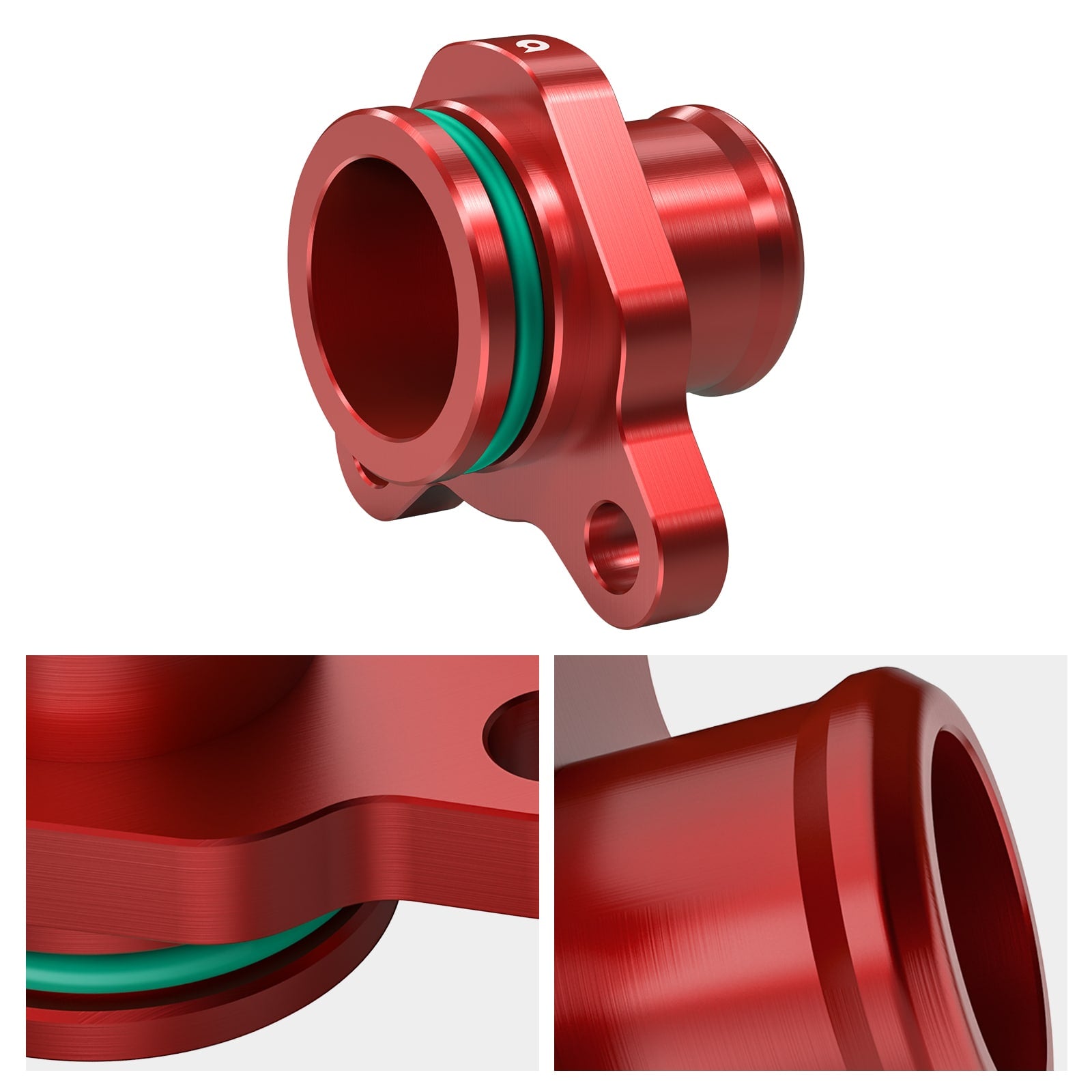

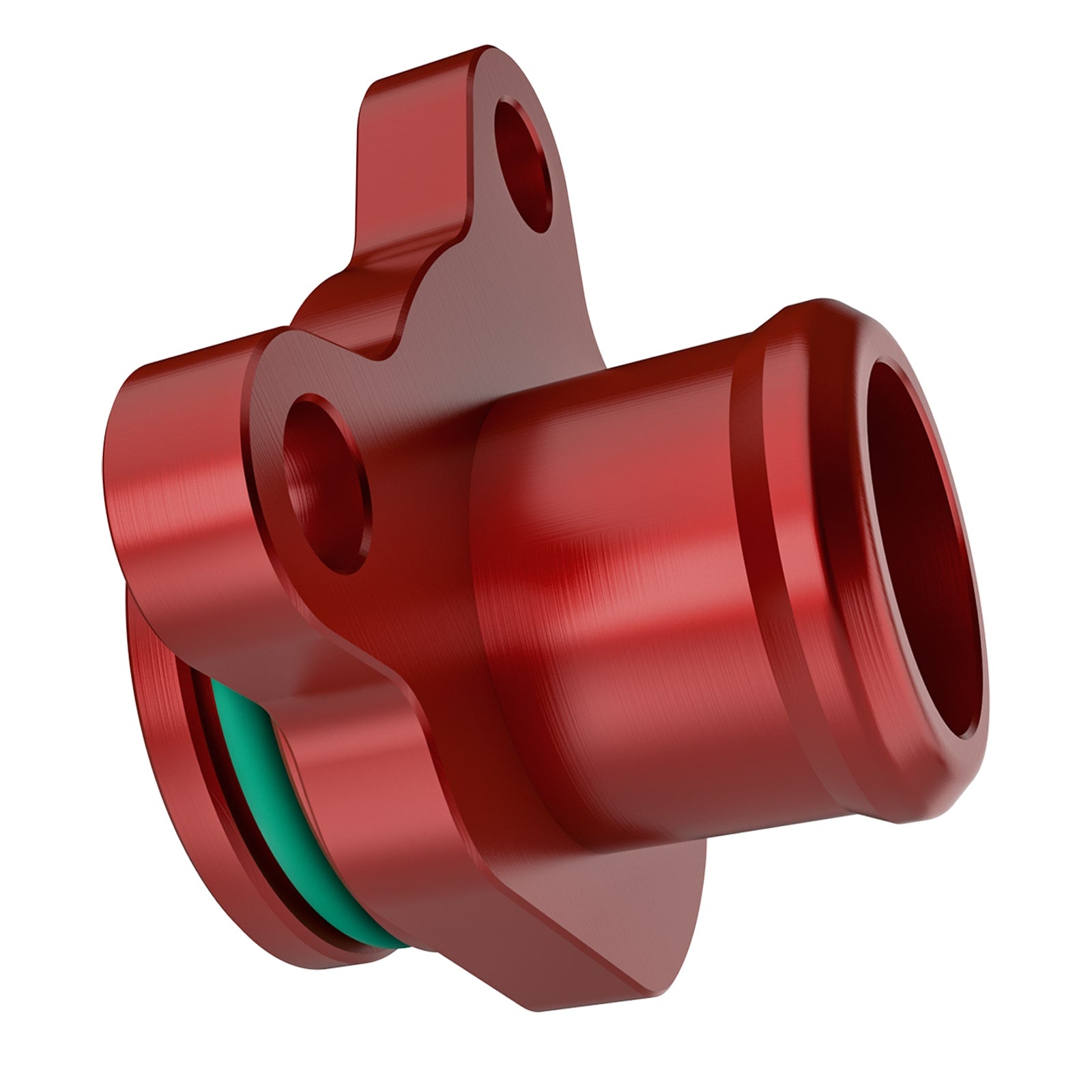

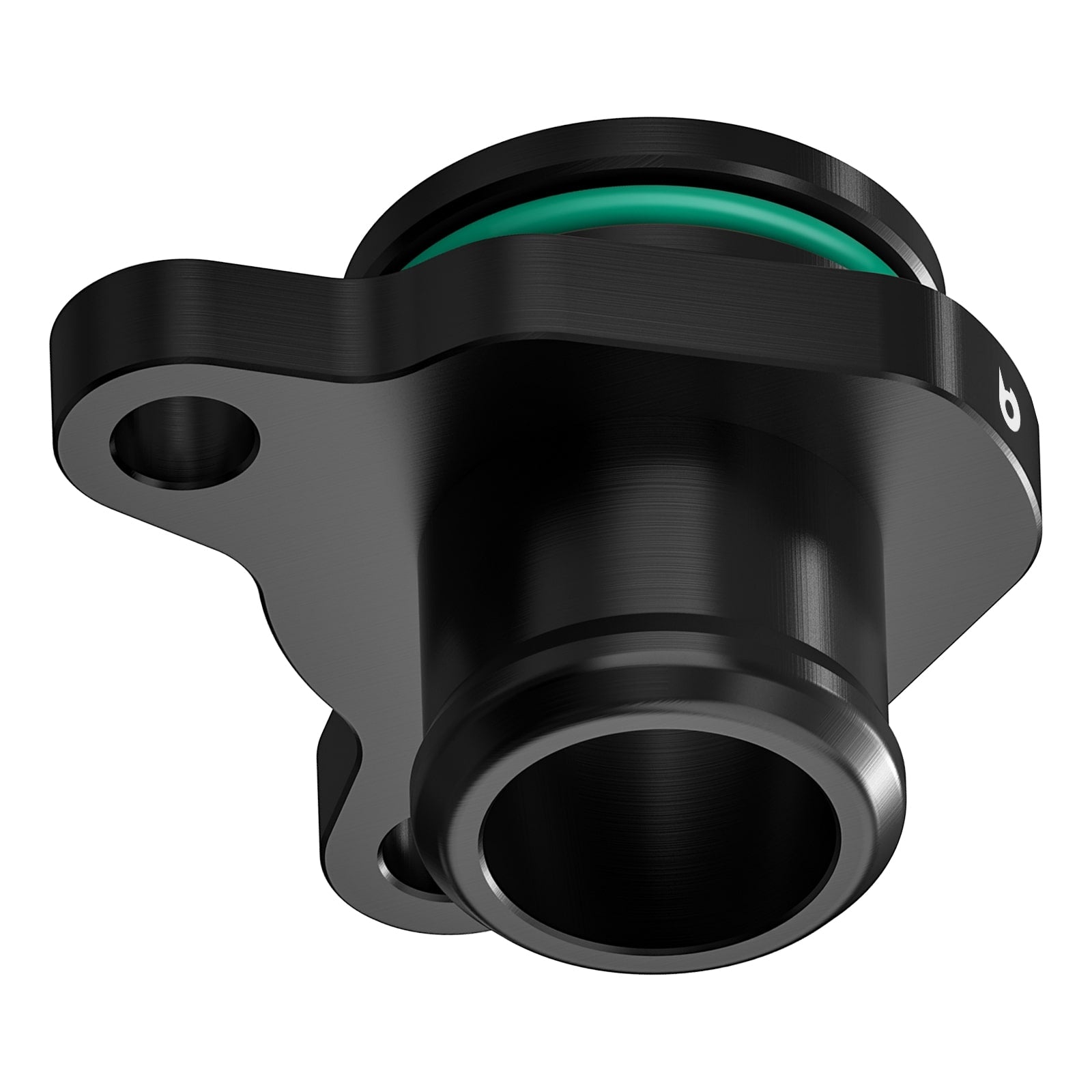

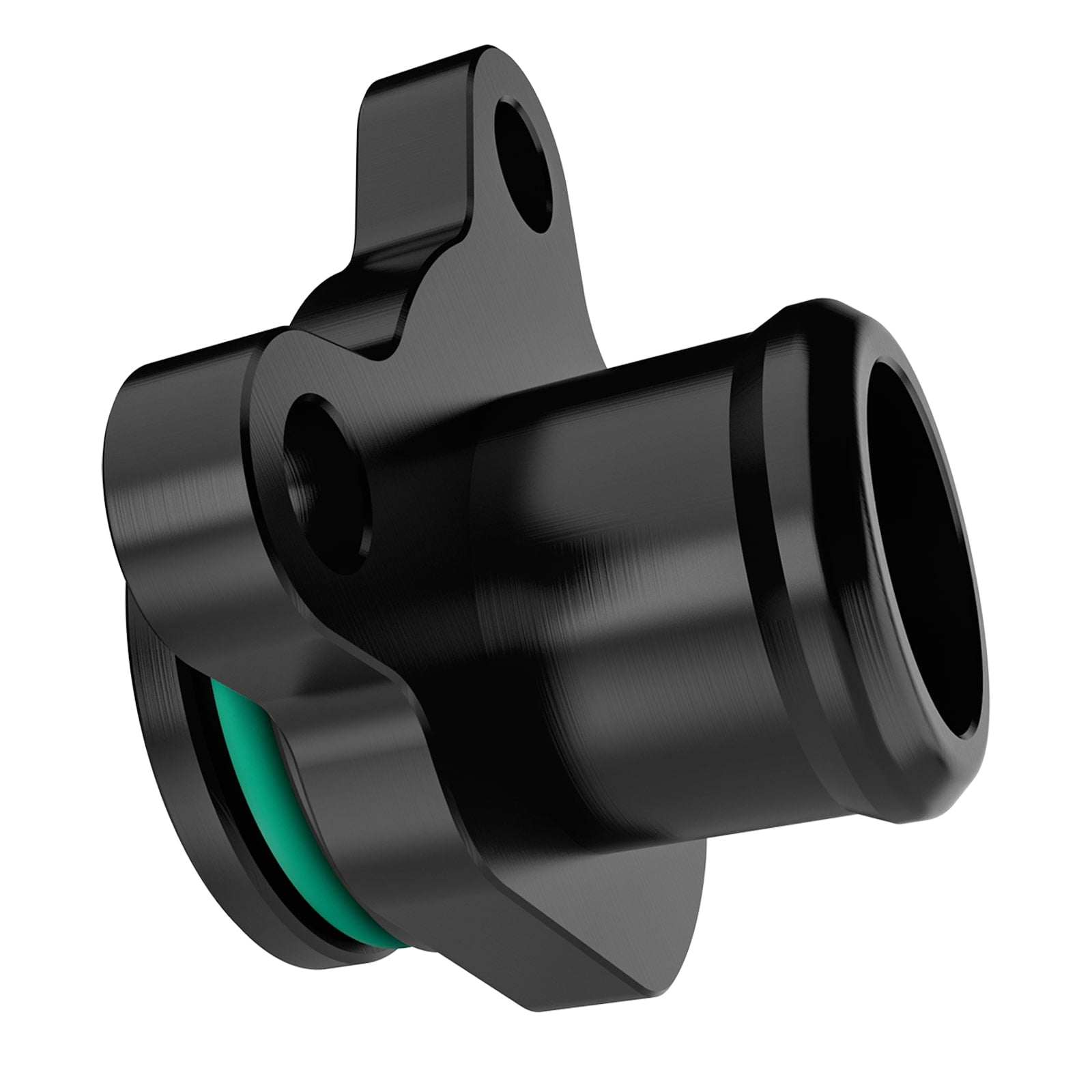

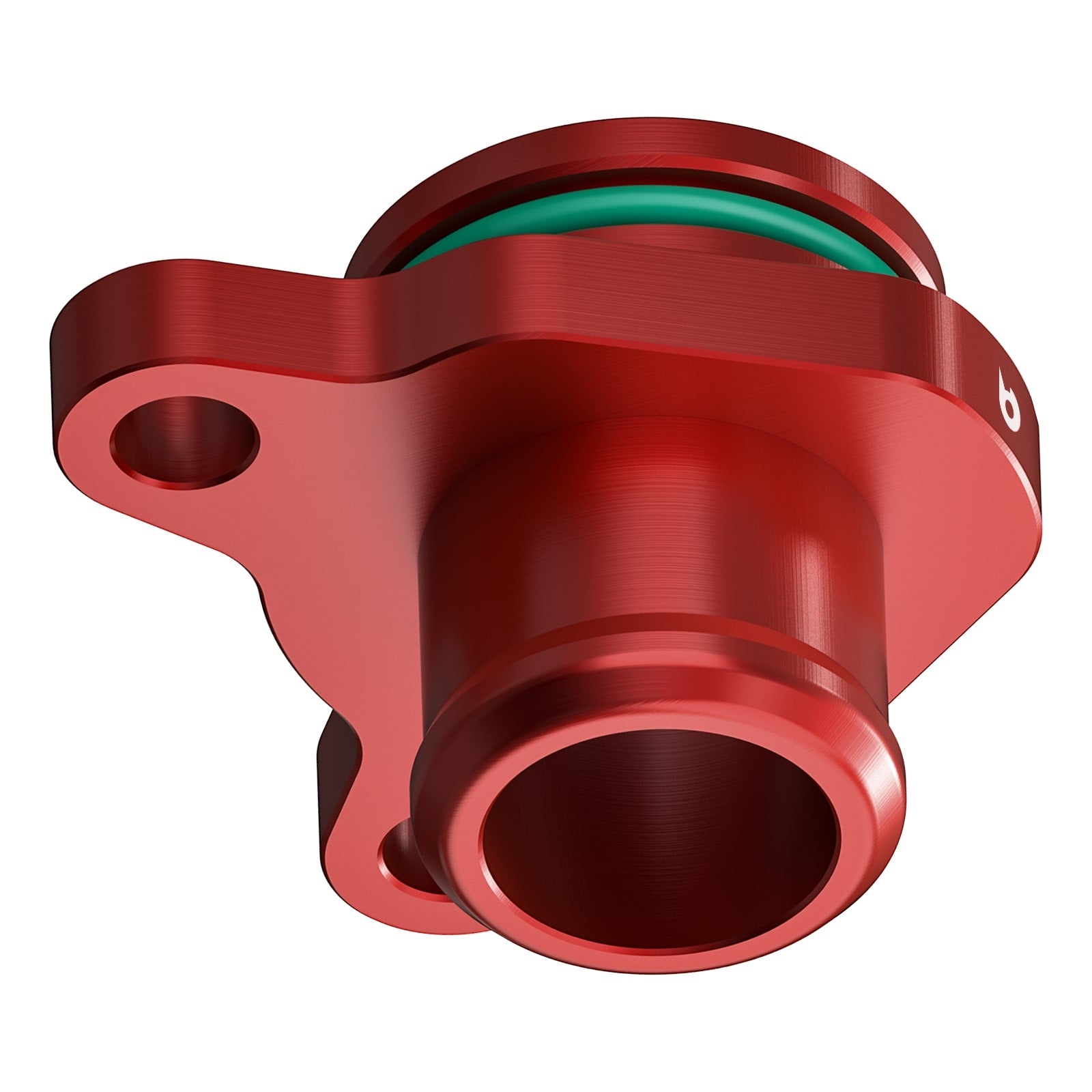

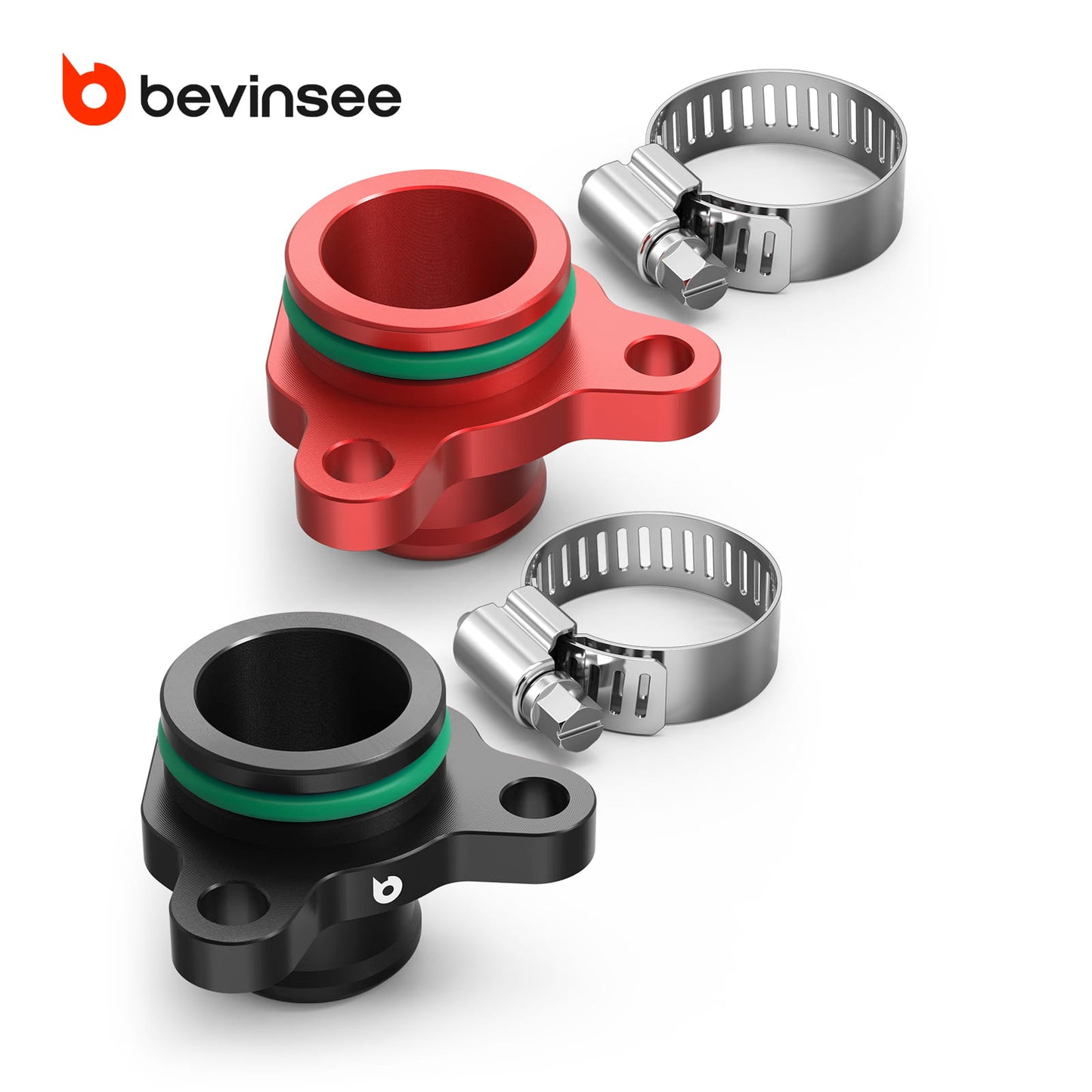

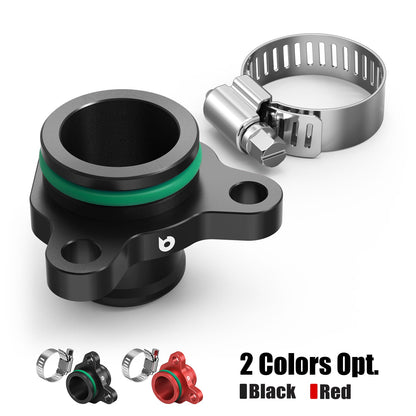

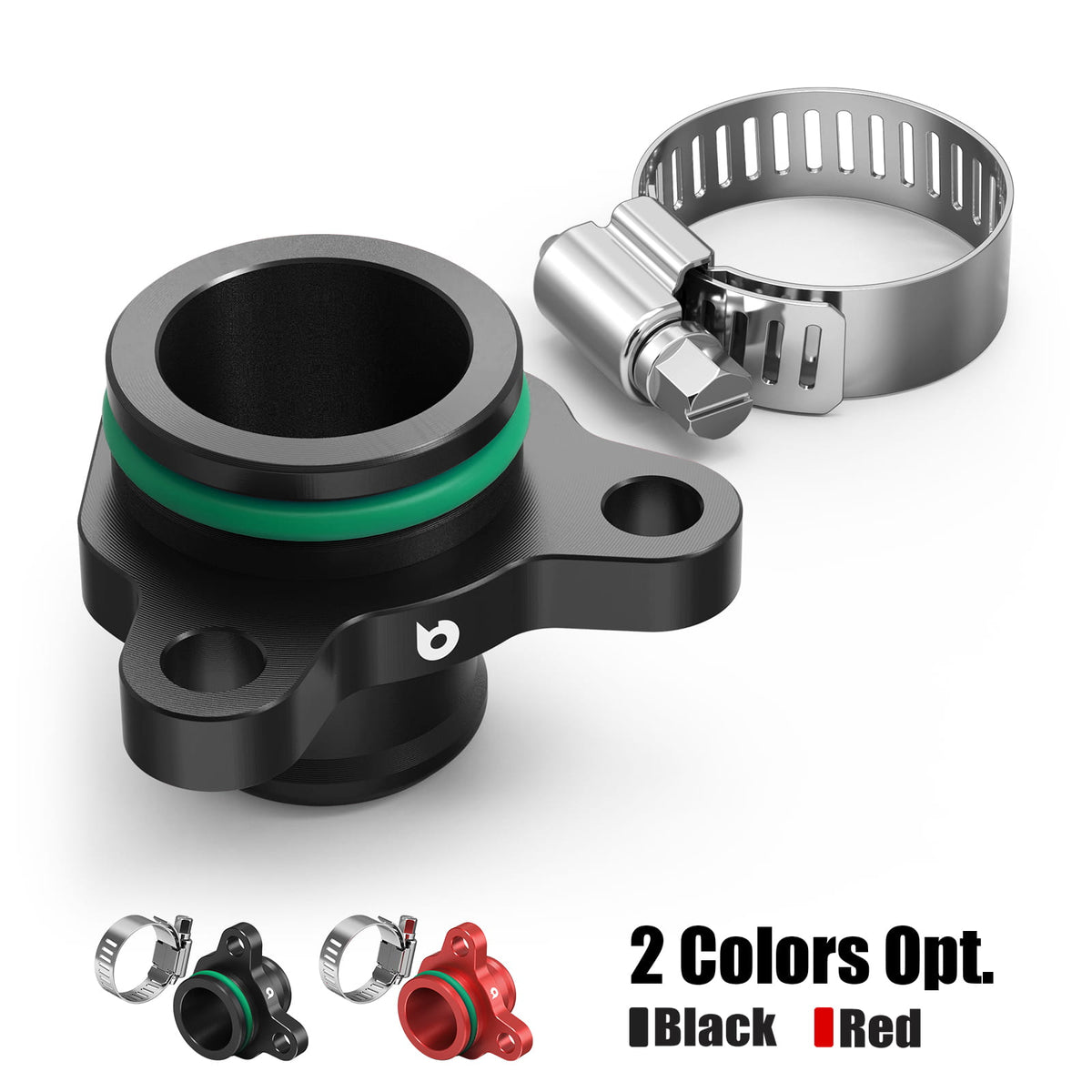

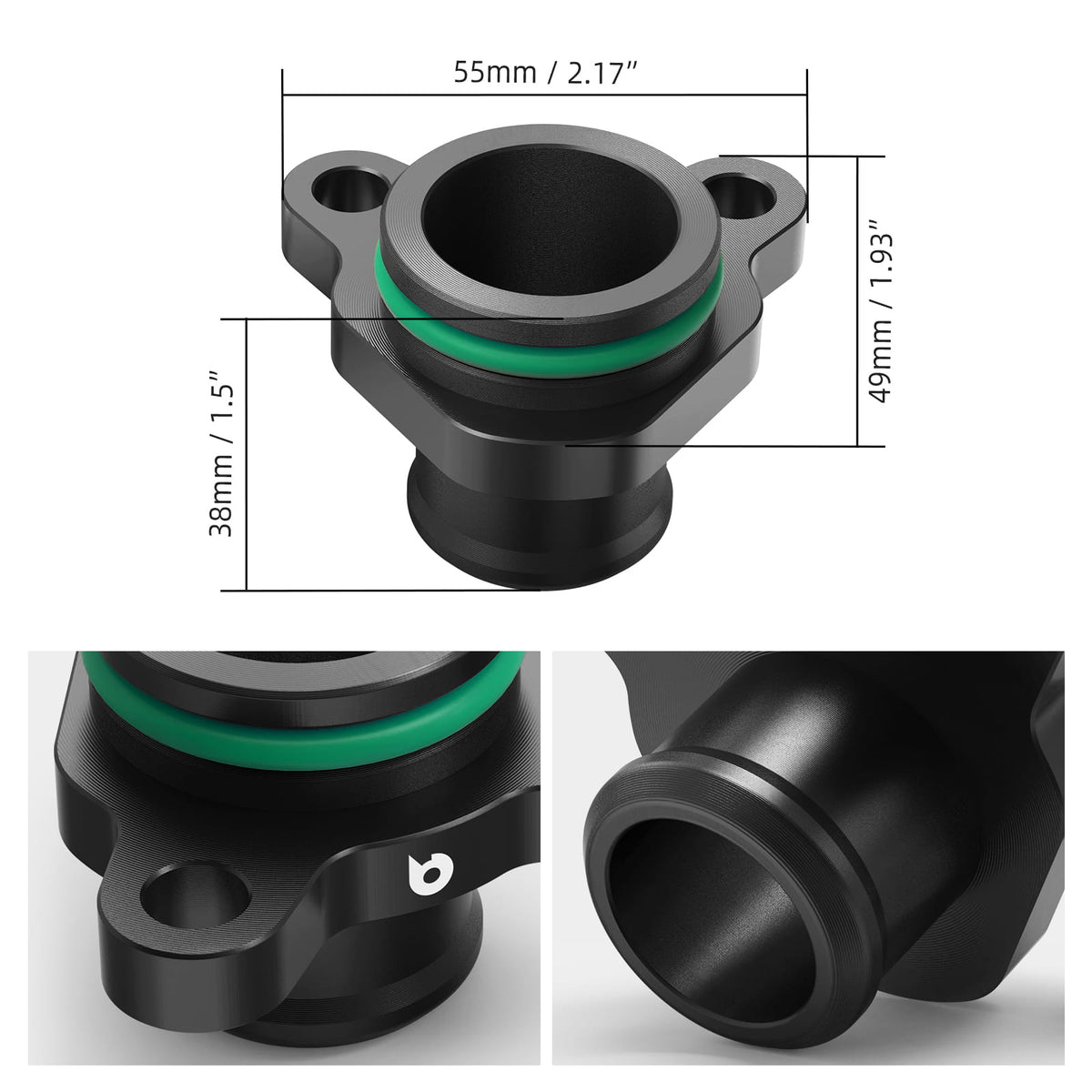

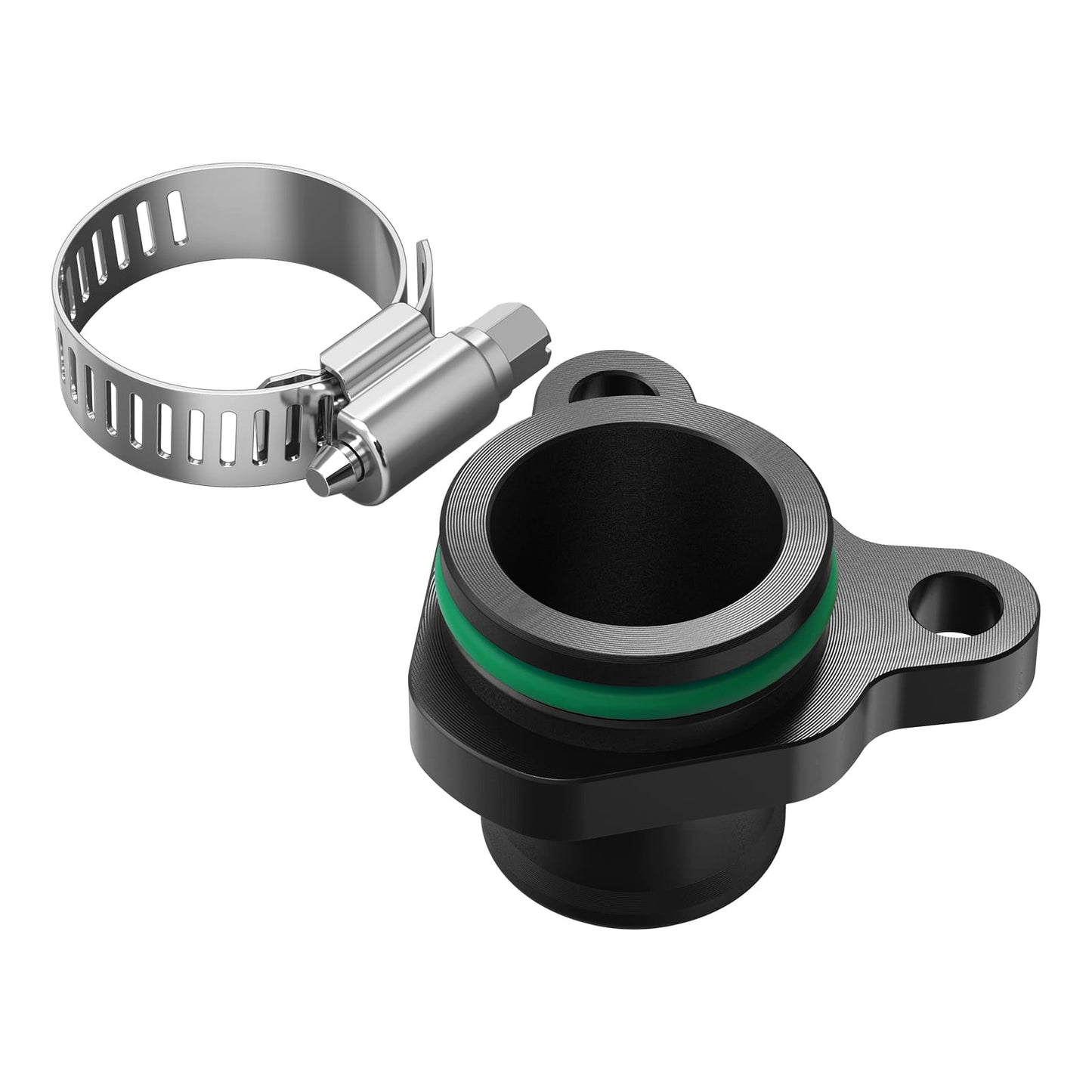

Billet Aluminum Coolant Port Fitting Upgrade for BMW N52 N54 N55 N20

In stock

9121073501

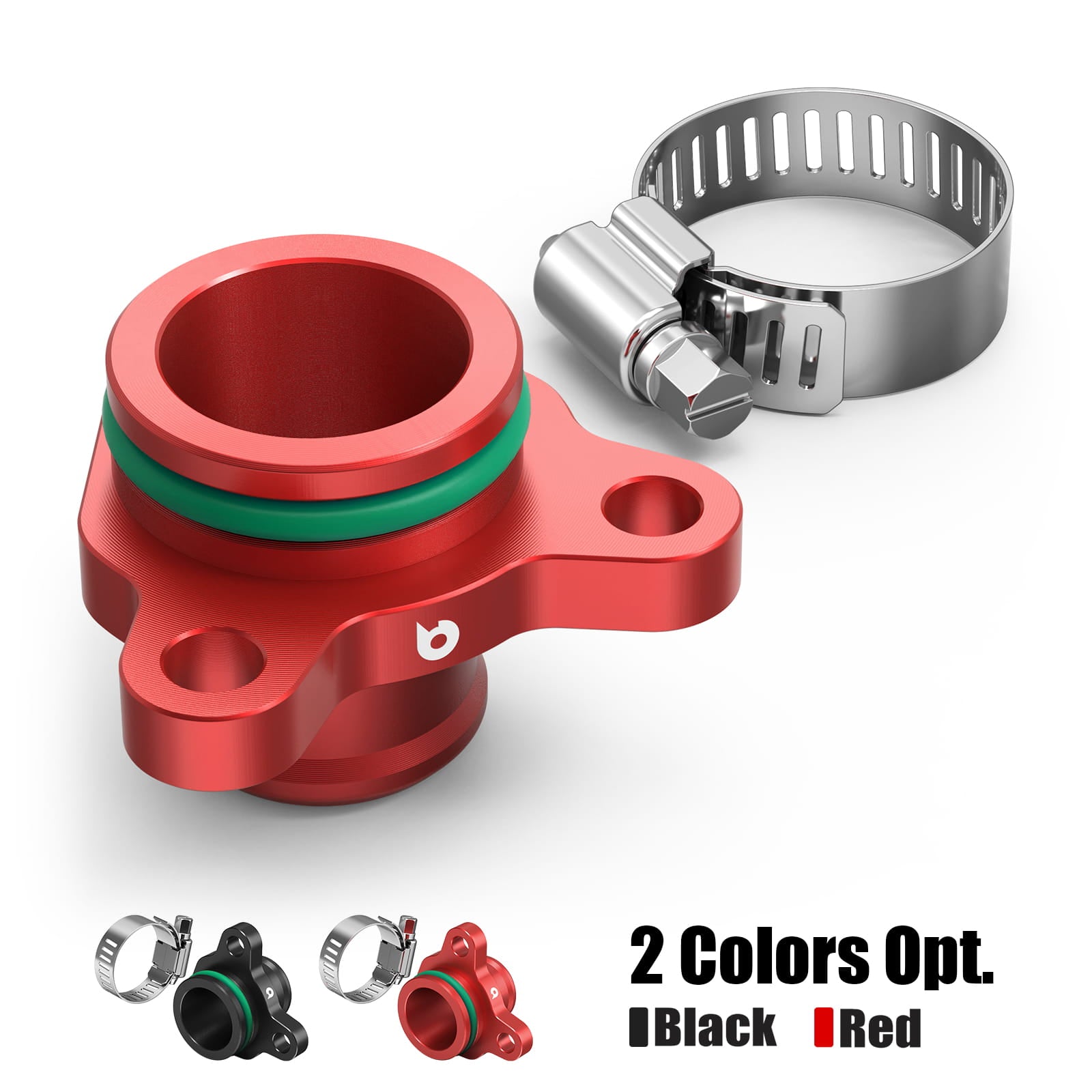

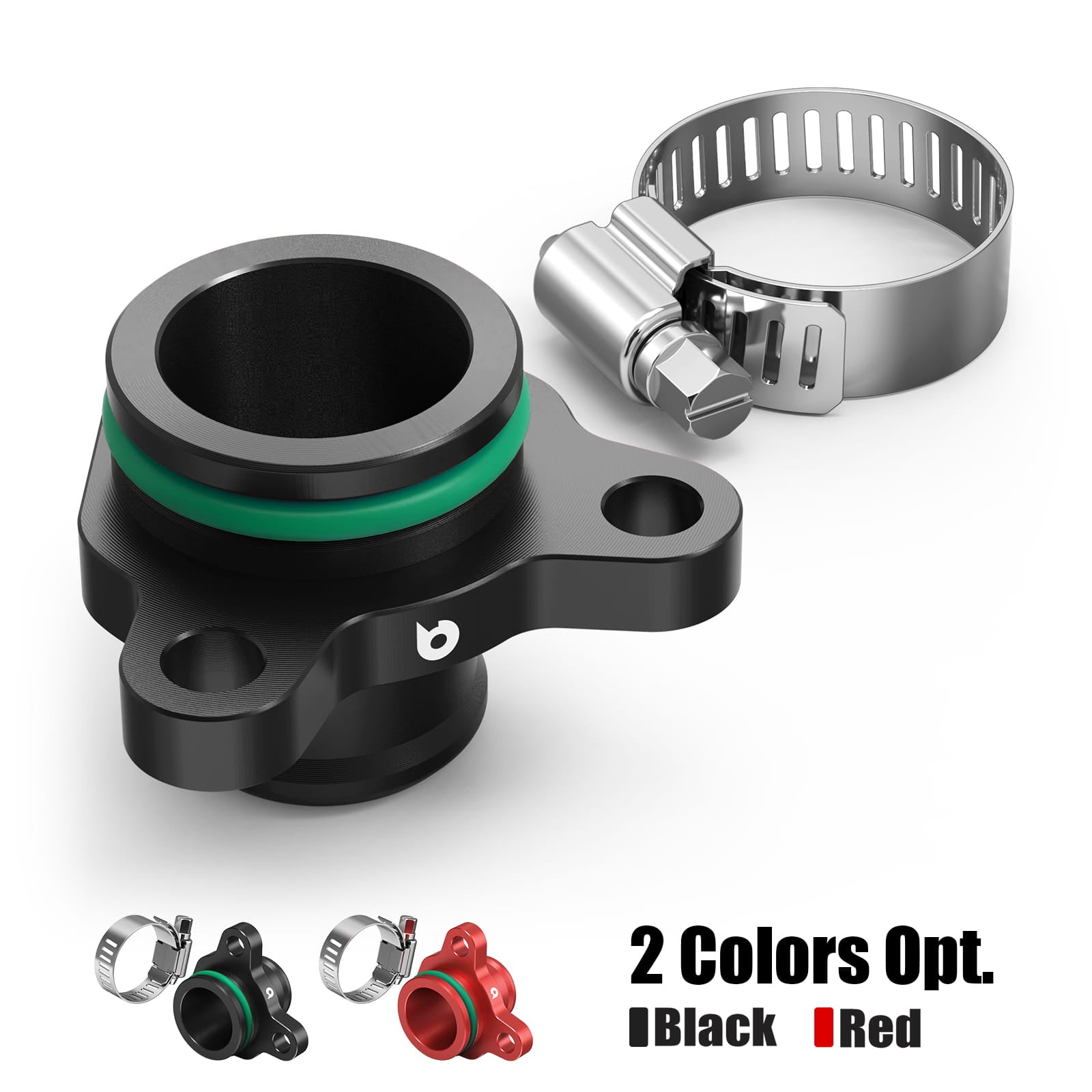

Color: Black
€12,99
€12,99 €17,99
Shipping calculated at checkout.

🍬Big Treats for Your Ride.

Enjoy 13% OFF 2+ parts, Code: HA13 🛒. copy

Enjoy 18% OFF 3+ parts, Code: HA18 🛒. copy

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day ship out? Be quick!

Up to 28% off

Some of the biggest issues when owning a BMW can come from cooling system components. Even through years of improvement, the same failure is seen with the plastic fittings and adapters from years of hot to cold temperature fluctuation. The N54 engine sees failure at the plastic cylinder head outlet adapter connecting the cylinder head to the thermostat hose. The stock plastic adapter simply shears off at the end of the barbed fitting, creating a massive coolant leak.

Features:

  • 【Perfect Replacement】The OE hose fitting is a known weak spot in the coolant system as it commonly cracks and leaks. Our upgraded water hose fitting is to replace the stock fitting with aluminum that will never wear out, crack or leak.
  • 【Aircraft-grade 6061 Aluminum】Made of 6061 Billet Aluminum instead of plastic,which is durable and wear-resistant.
  • 【Smooth Flow】There are no sharp corners on this fitting so that the coolant will not be disrupted as it passes through.
  • 【Max Coolant Flow】Our aluminum fitting has a larger diameter than the OEM part which improves the coolant flow and cooling performance.
  • 【Easy to Install】Direct fitment with no modification, easy installation.

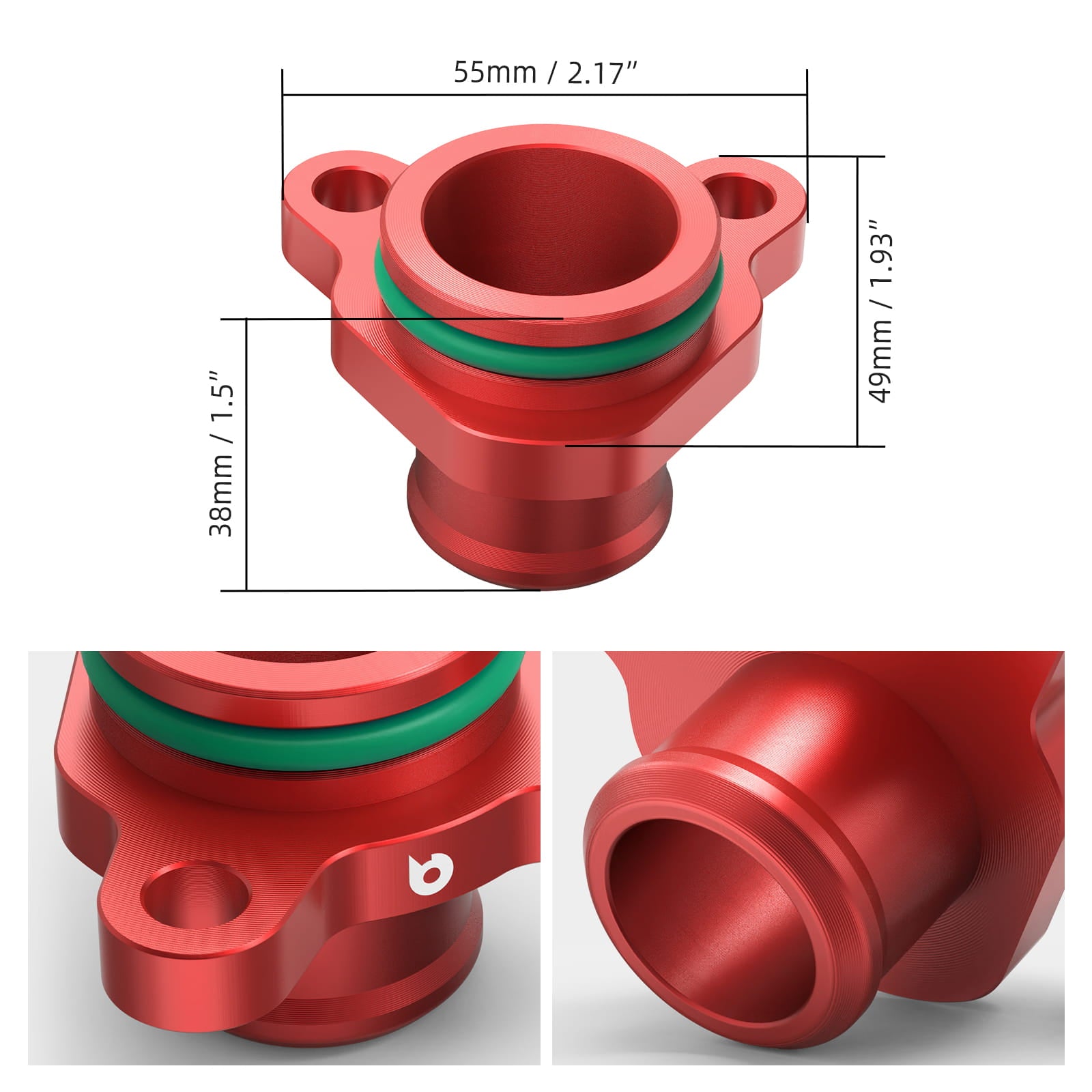

Specification:

  • Type: Water Hose Fitting
  • Bottle Bracket Material: Billet aluminum
  • Surface Finish: Anodized
  • Replaces Part Numbers 11537649409, 11537605152, 11537603514, 11537598234, 11537592095, 11537591889, 11537585023, 11537584549, 11537581063, 11537580969, 11537578727, 11537566329, 11537560363, 11537552339, 11537550062, 11537545890, 11537541992，11 53 7 603 514

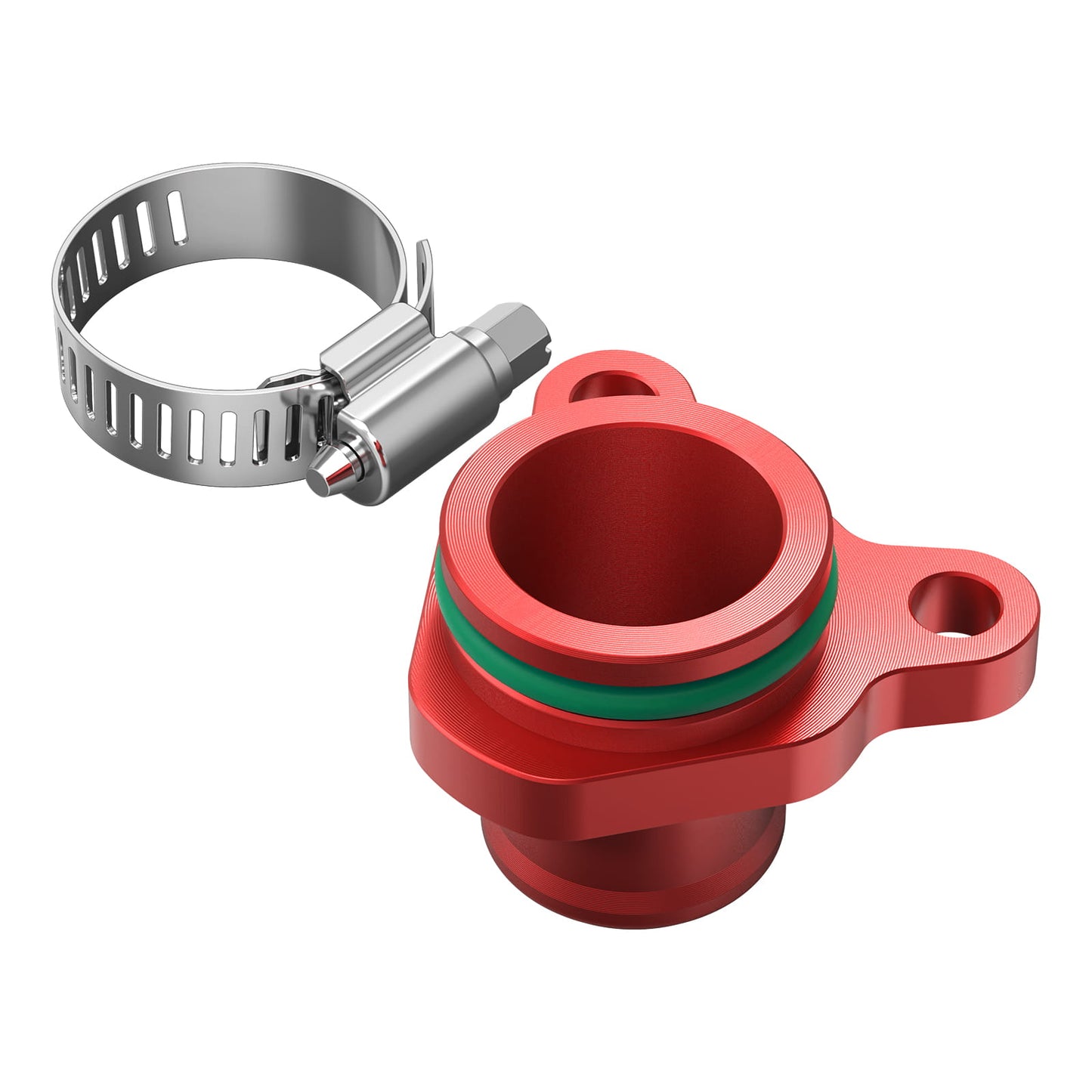

Package Included:

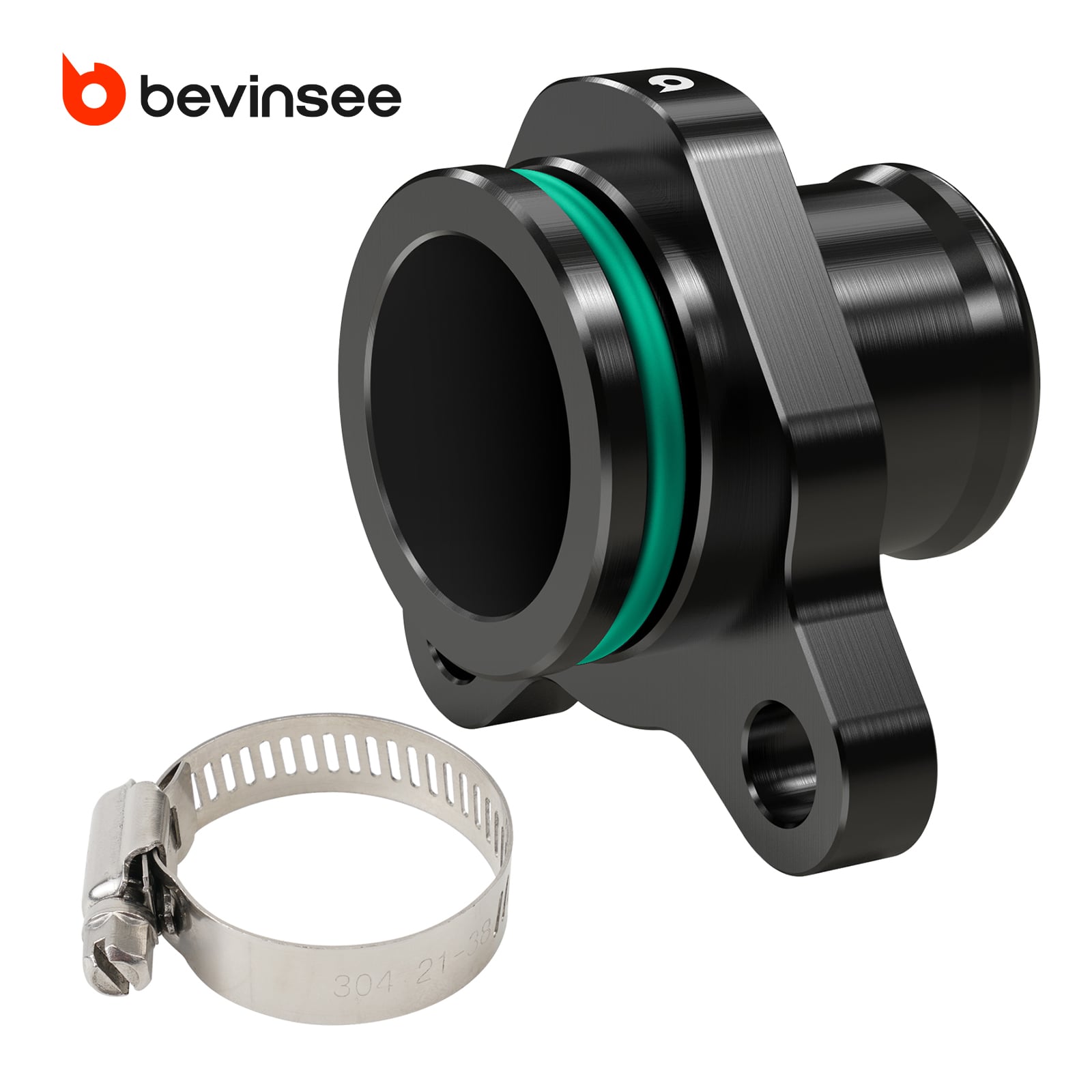

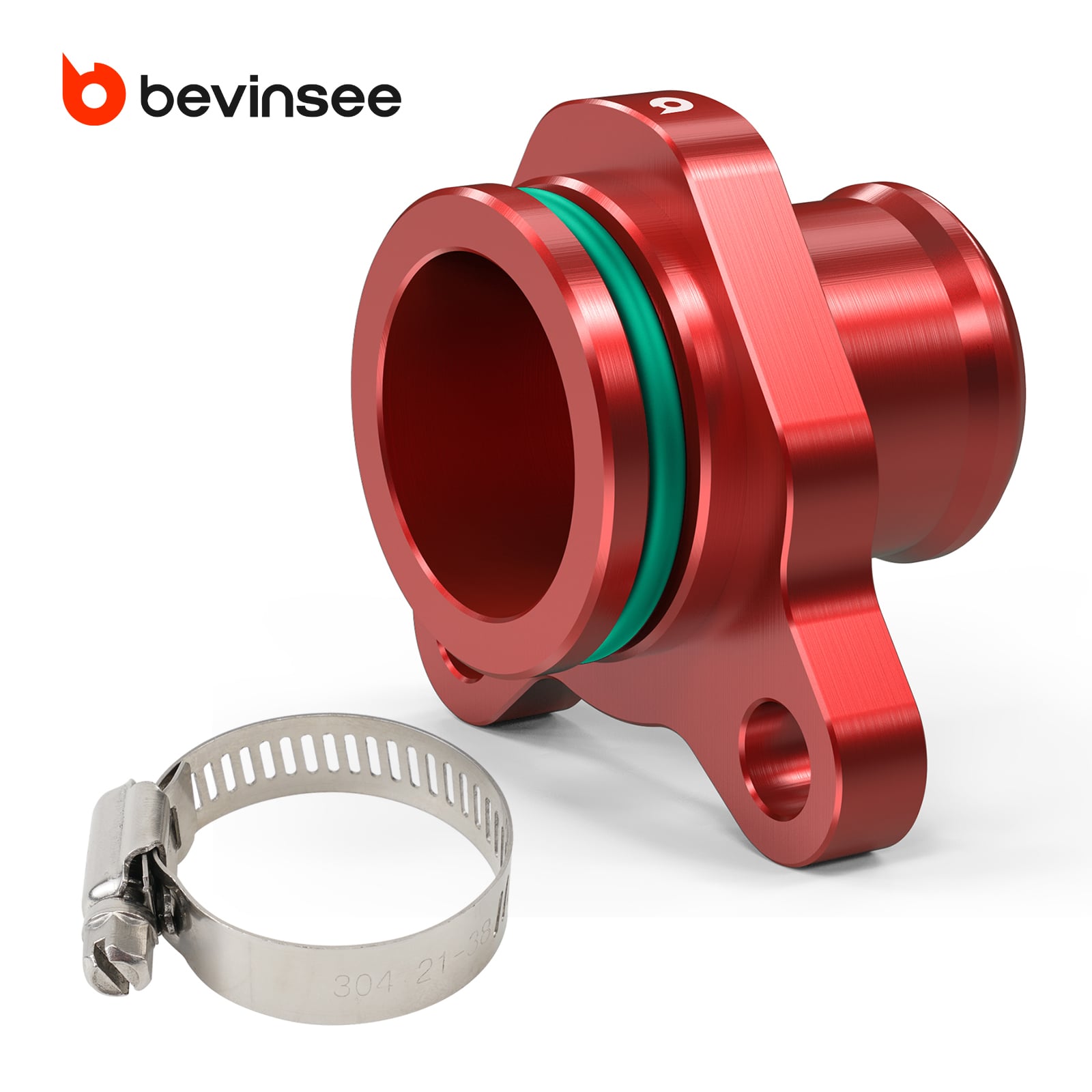

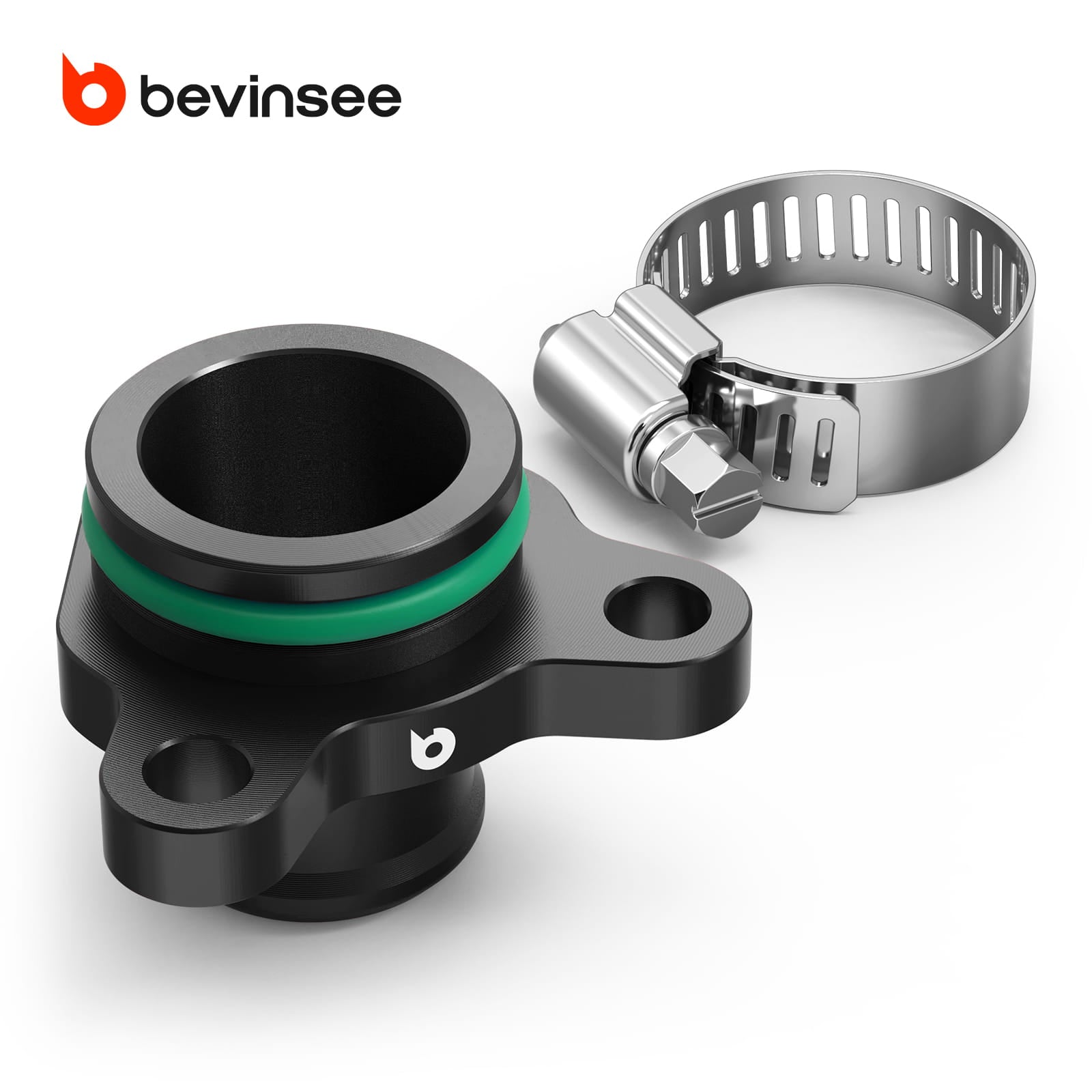

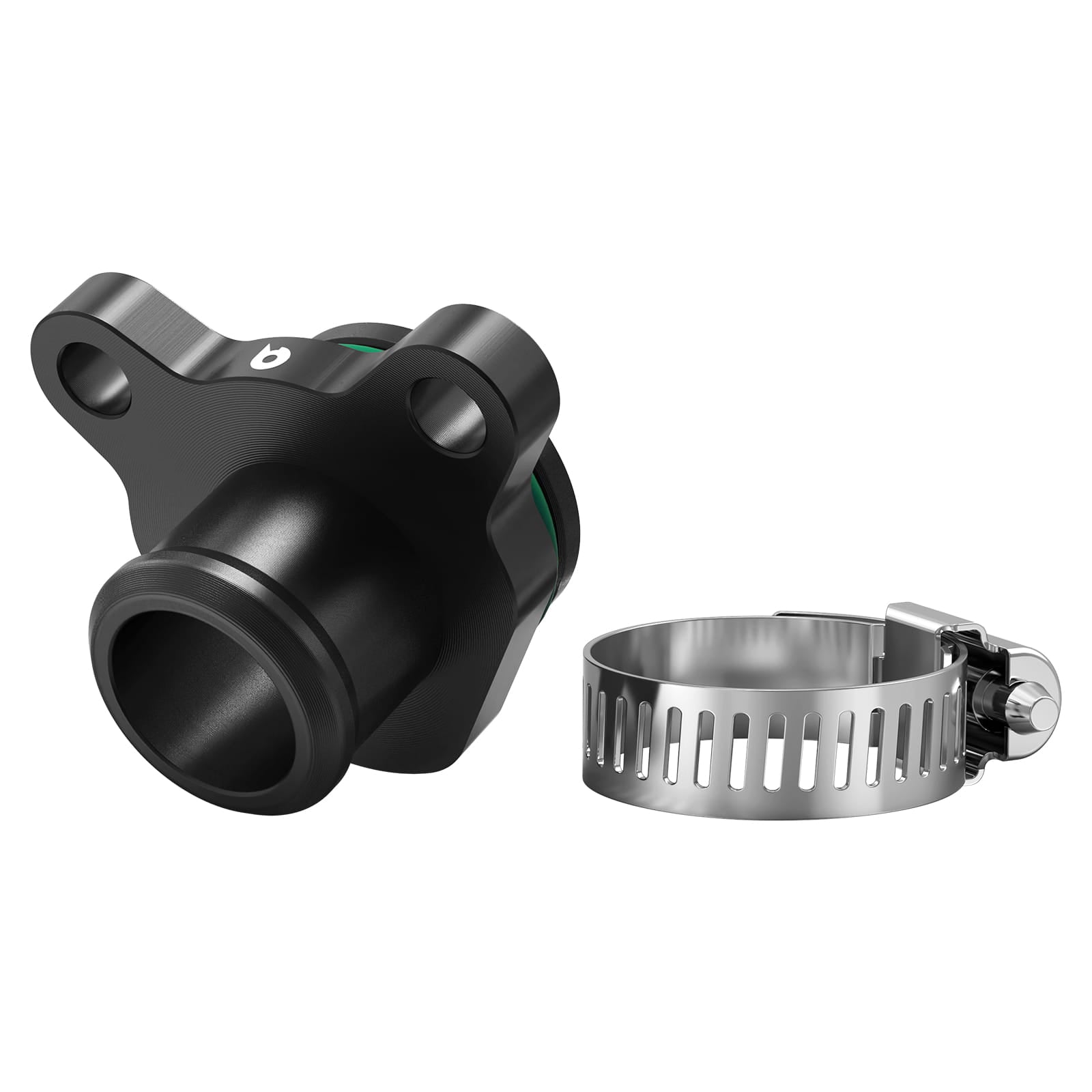

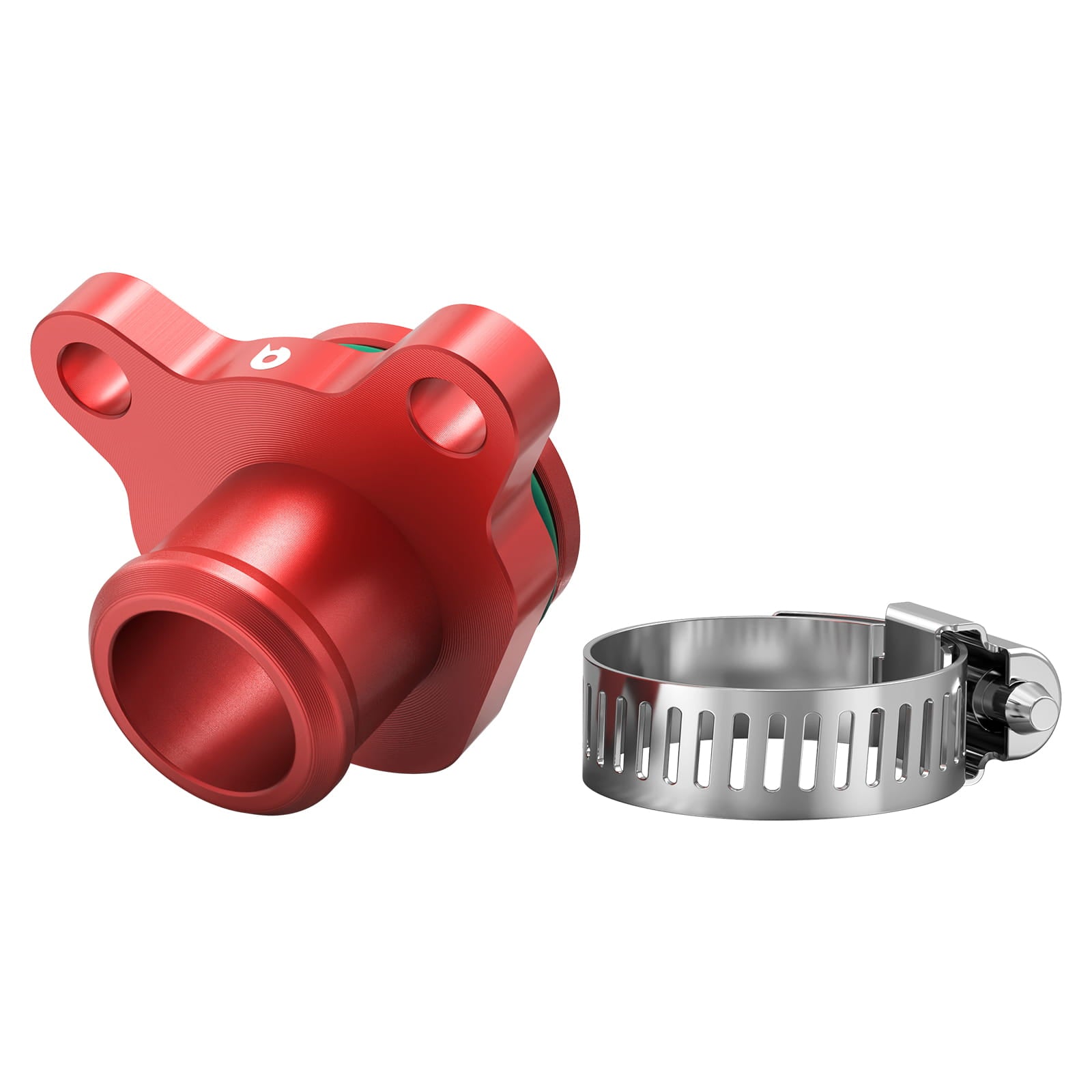

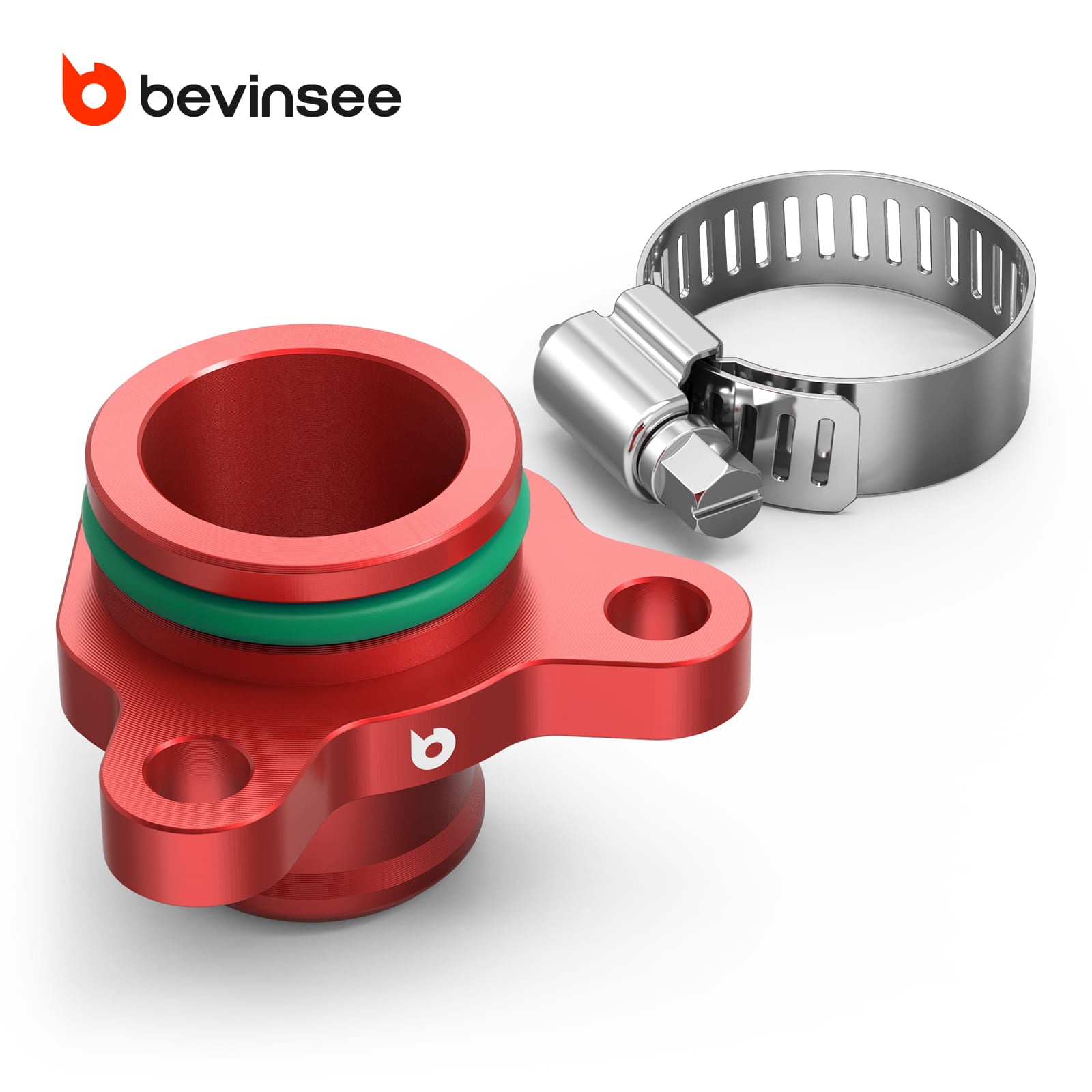

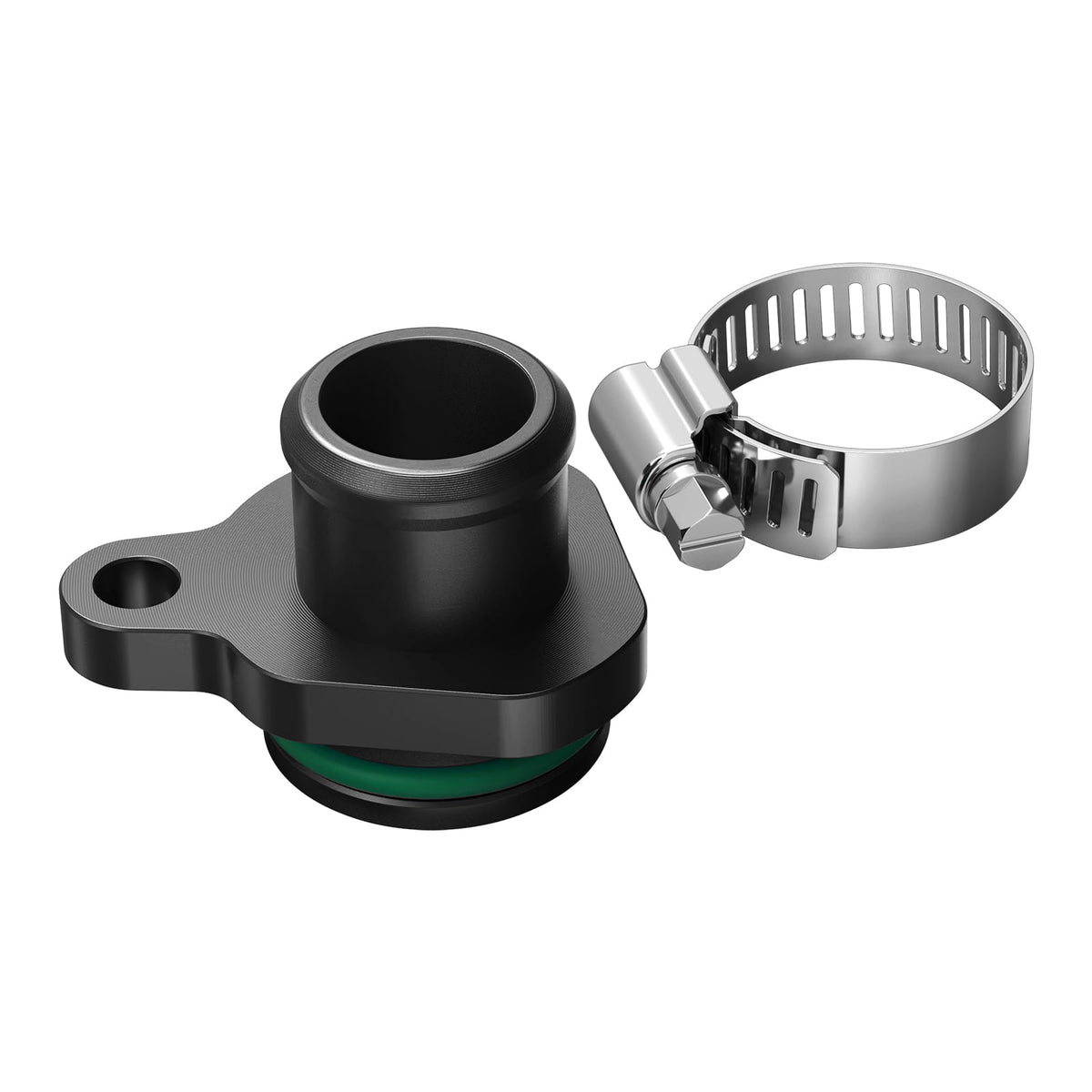

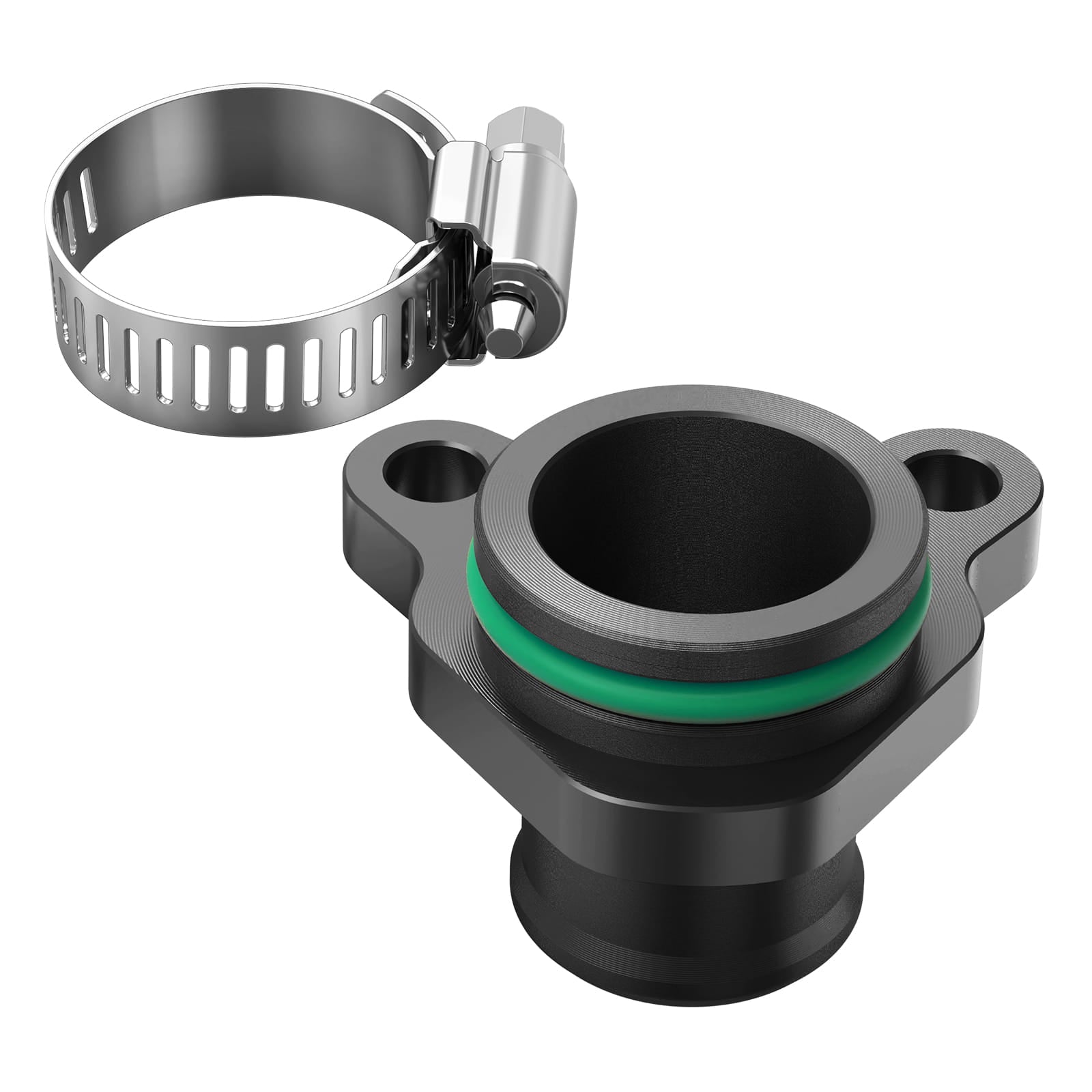

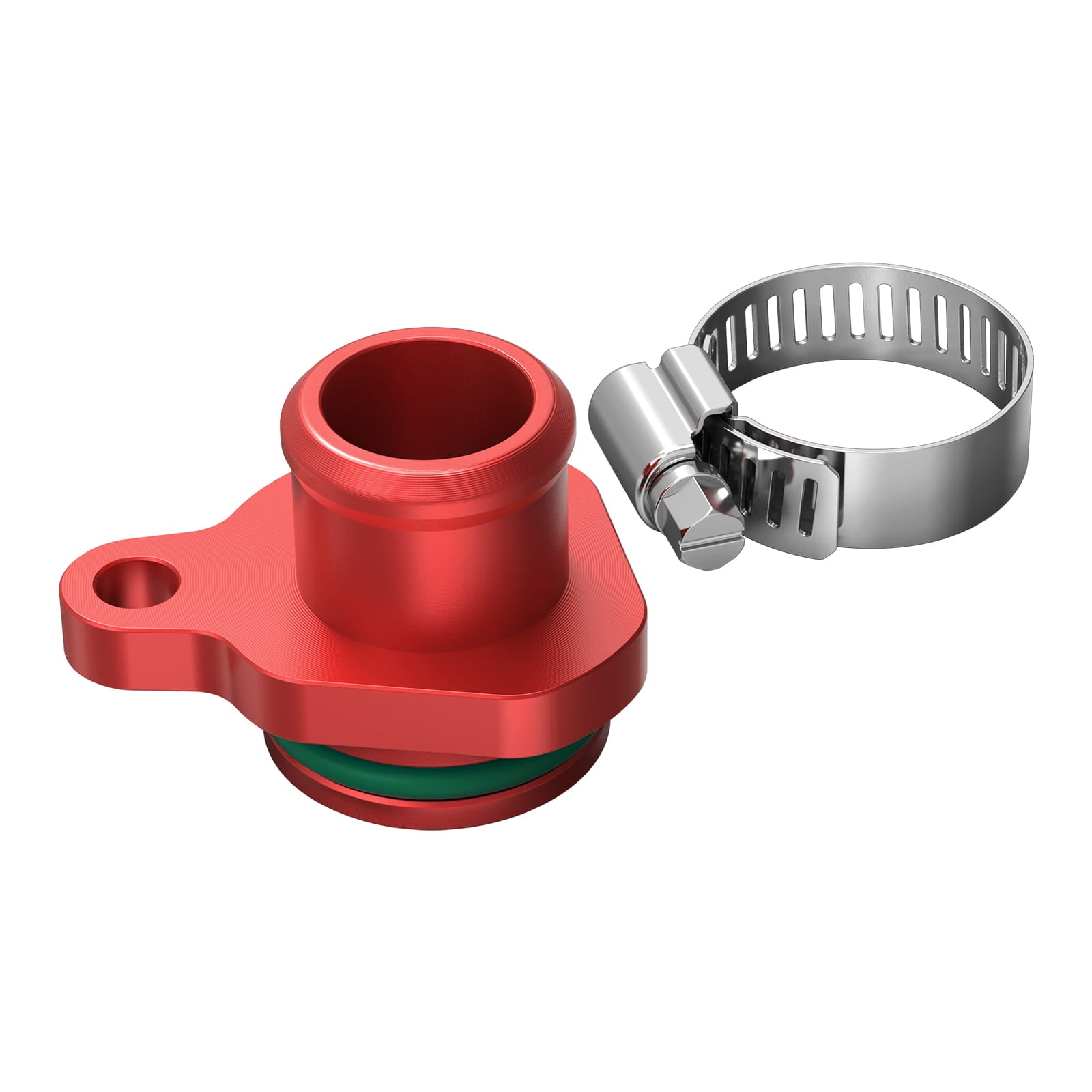

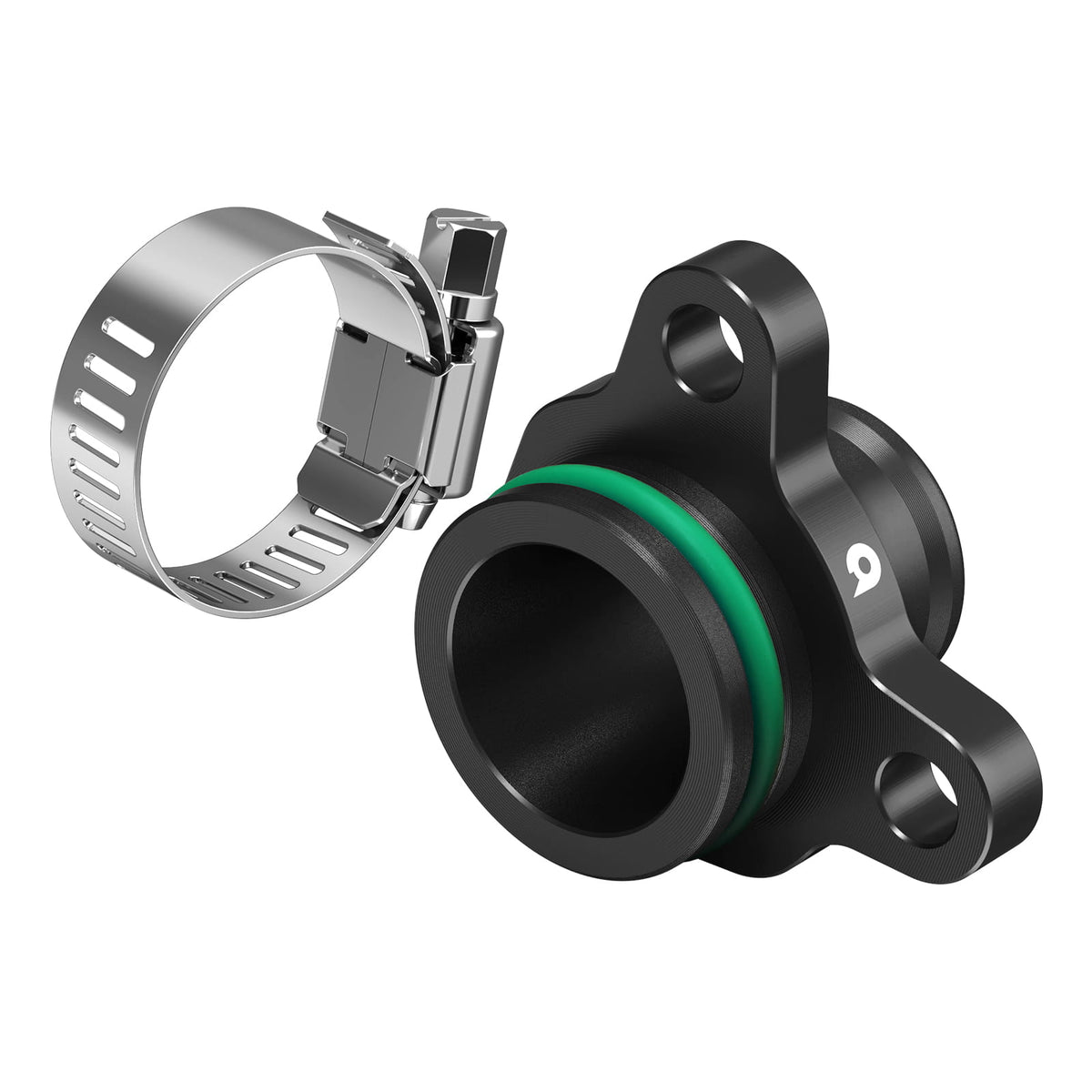

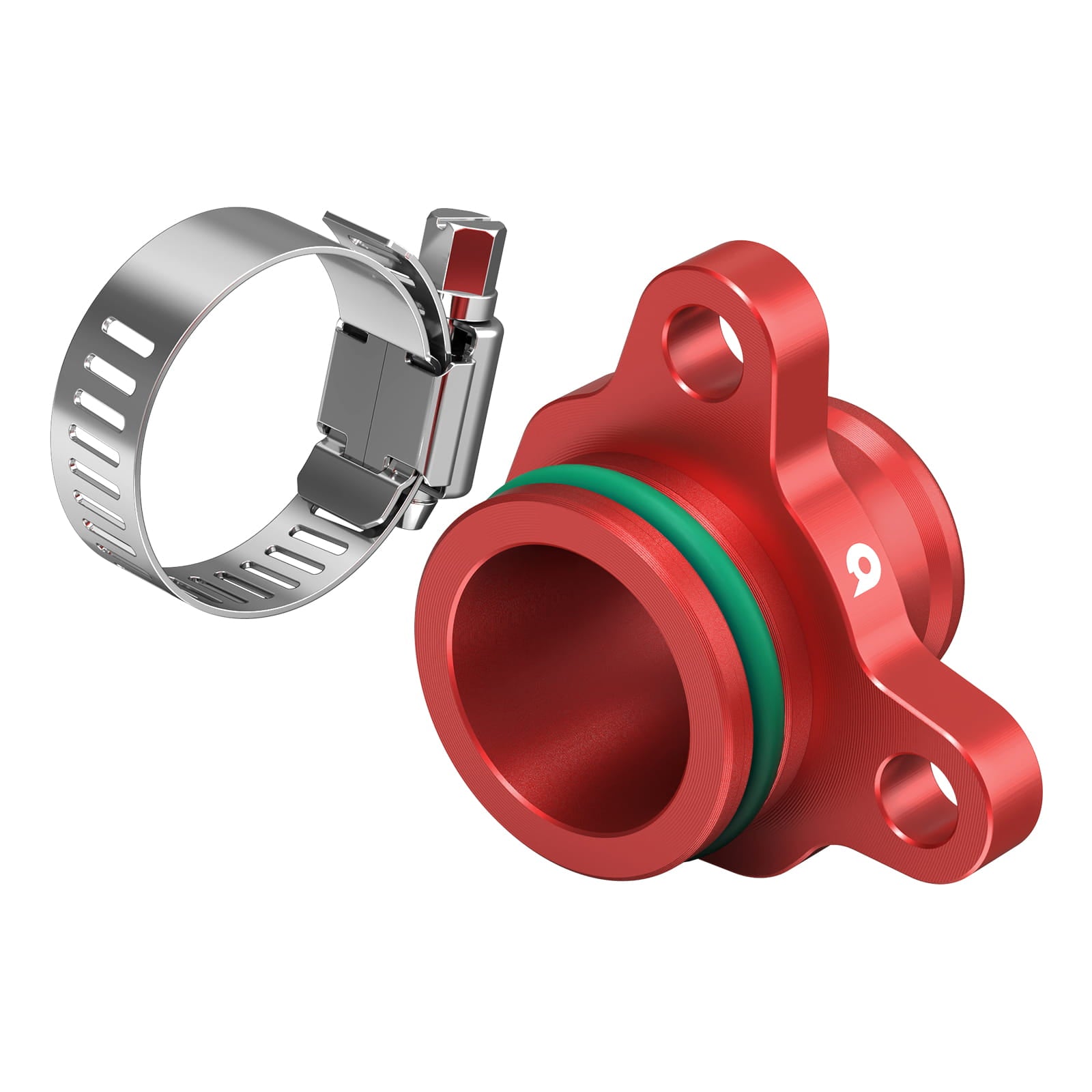

Billet Aluminum Coolant Port Flange Fitting
Heavy-duty o-ring


Note：N55 engines need using a slightly thinner O ring to install
If a replacement o-ring is needed for future use please see p/n 11537545278（29x2.9mm）

Engine Fitment:
For BMW N20/N26/N51/N52/N54/N55 Engines

Vehicle Fitment:
For BMW 1 Series E81/E82/E87/E88 125i 128i 130i 135i 135is 1M 2008-2013
For BMW 1 Series F20/F21 125i 2012-2015
For BMW 1 Series F20/F21 M135i 2012-2016
For BMW 2 Series F22/F23 220i 228i M235i 2014-2016
For BMW 3 Series E90/E91/E92/E93 323i 325i 328i 330i 335i 2005-2012
For BMW 3 Series F30/F31/F34 320i 328i 335i 2012-2015
For BMW 4 Series F32/F33/F36 420i 428i 435i 2013-2016
For BMW 5 Series E60/E61 523i 525i 528i 530i 535i 2005-2010
For BMW 5 Series F10/F11 520i 523i 528i 530i 535i 2010-2016
For BMW X1 Series E84 16i 20i 25i 28i 35i 2009-2015
For BMW X3 Series E83 25i 30i 2006-2010
For BMW X3 Series F25 20i 28i 35i 2011-2017
For BMW X4 Series F26 20i 28i 35i M40i 2014-2018
For BMW X5 Series E70 30i 35i 2007-2013
For BMW X5 Series F15 35i 2013-2018
For BMW X6 Series E71 35i 2008-2014
For BMW X6 Series F16 35i 2015-2019
For BMW Z4 Series E85/E86 25i 30i 2006-2008
For BMW Z4 Series E89 18i 20i 23i 28i 30i 35i 2009-2016


Installation Tips:

  • Remove two 10mm bolts.
  • Remove the old fitting from the engine block. The O-ring needs to be removed as well as it may get stuck inside.
  • Clean the outlet on the engine block. Remove any remaining pieces from the coolant hose.
  • Install the new fitting. Lubricate the seal O-ring before installation. Tighten the two 10 mm bolts.
  • Slide the coolant hose on the outlet port. Tighten the clamp.
Disclaimer:
Bevinsee parts are not sponsored or endorsed by, or affiliated with the brands its parts fit, including Porsche, Subaru, Jaguar, BMW, Isuzu, Chrysler, Dodge, Jeep, Buick, Cadillac, Chevrolet, GMC, Volvo, Land Rover, Oldsmobile, Pontiac, Ford, Lincoln, Mercury, Acura, KIA, Nissan, Infiniti, International Harvester, Mitsubishi, Audi, Lexus, Toyota, Mazda, Volkswagen, Suzuki, Saab, Honda, Alfa Romeo, Saleen, Mercedes-Benz, Nash, Hummer, Freightliner, Datsun, Saturn, Turner, Geo, Lada, Fiat, Daihatsu, Opel, Vauxhall, Sabra, Tesla, Ram, Rover, Skoda, Healey, Mini, Smart, Scion, Renault, Seat, Peugeot, Merkur, Astra, Tucker, VW, Routan, Tiguan, Touareg, Jetta, Gti, Passat, Golf, Bosch, Denso, Holden, Chery, Mercedes Benz, Holden Special Vehicles, Hyundai, Trabant, Citroën, Freightline, etc.

  • 5 stars: 19 (95%)
  • 4 stars: 1 (5%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous

Good Quality 👍

j
jacky
Easy install, perfect if shipping more faster

It's easy to install and use, but the shipment arrived a week late. Other than that, it's a solid product.

M
Merphy Billy
Great solution

Excellent solution to stop the plastic fitting from failing over time and damaging your engine.

D
Drogan Labrry
Readily available, fast delivery

This is a clear upgrade over the low-quality OEM plastic part. It should be considered a maintenance item, as your stock plastic piece WILL fail eventually.

W
Wooden
Perfect replacement

This part saved me the trouble of buying a whole hose for my 330i. The factory hose flange is part of the hose, and it was broken. The factory clamp was also broken. The hose is about an inch shorter, but it looks good. If you're replacing a leaking oil filter housing, you'll want to get one of these. But the price is amazing!

G
Gario Hugo
Better than original a lot

So far, so good. The OEM parts were more worn than I expected, so Im glad I replaced them. They perform as intended. Fit and finish look flawless. Ive only run a few hundred miles over the summer, but the hose clamps are holding tight, installed perfectly, and no leaks. The O-rings long-term condition remains to be seen, but so far, so good.

J
Jose
You should replace earlier

The stock plastic flange failed and stranded me roadside. Replaced it easily. The aluminum version is far superior to the original plastic. If your car still has the OEM plastic part, I recommend swapping it before it breaks.

B
Barna Kocsis
Barna

Exelet items affordable price. Sad you do not do much for e93

W
Wensen
Quality piece

Great quality. I went with the red to match the oil cooler AN fittings I got from a different seller.

B
Bailey
Fit correctly

Worked well.

R
Ruby
A must do for your BMW

If you have a BMW with this type of coolant flange, it is a must replace item and will last forever and wont leave ypu stranded.

D
Dudley
Best service in PA

Everything was Excellent, thank you

S
Sotos
It works in BMW 325i 2006

The car doesnt have a coolant leak anymore!

B
Bless The USA
Review from BMW Technician!!

I rarely endorse aftermarket parts specially for BMW's but this is an exception. This aluminum fitting eliminates the possibility of it ever breaking again and the part fits and works perfectly.

B
Baclawski
Works great Fit great

bmw n52 - super easy to install.

V
Vincenty Montes
Excelente calidad y precio

Excelente precio y envo sper rpido

M
Miguel Pe?a
Great A Quality & Easy To Install ??

I fucken love you seller ???????? Great product has a longer tube so the hose slips perfect , gasket worked perfectly , I was impulsively buying up to $500 in replacement equipment but then found the problem and for the price its reasonable

T
Trailty
Add grease to seal and housing to get item to seat correctly.

Great item. Easy install. Just put a thin coat of grease on the seal and put a thin coat of grease on the lip of the housing. Line it up, and the part will seat. Hold part. Install bolts tighten down with hand.

E
Eligilier
Worth

The part itself is great has a nice finish and tight tolerances with a good o ring.

A
Austin
This part fit my n54 very well

The oring was tight but it did go in when I added oil. I removed it again and the oring did not tear so it does work.
