LS Truck Low Mount Alternator and Power Steering Pump Bracket Kit For LSX

Features:

• Made from premium 6061 billet aluminum, lightweight and sturdy enough to support loads without deformation.

• Includes LSX Power Steering Mount & Alternator Bracket Low Mount.

• Processed by cutting-edge anodic oxidation to prevent rust and corrosion.

• Machined by cutting-edge CNC technology, accuracy of each cutting part can be ensured for easy installation.

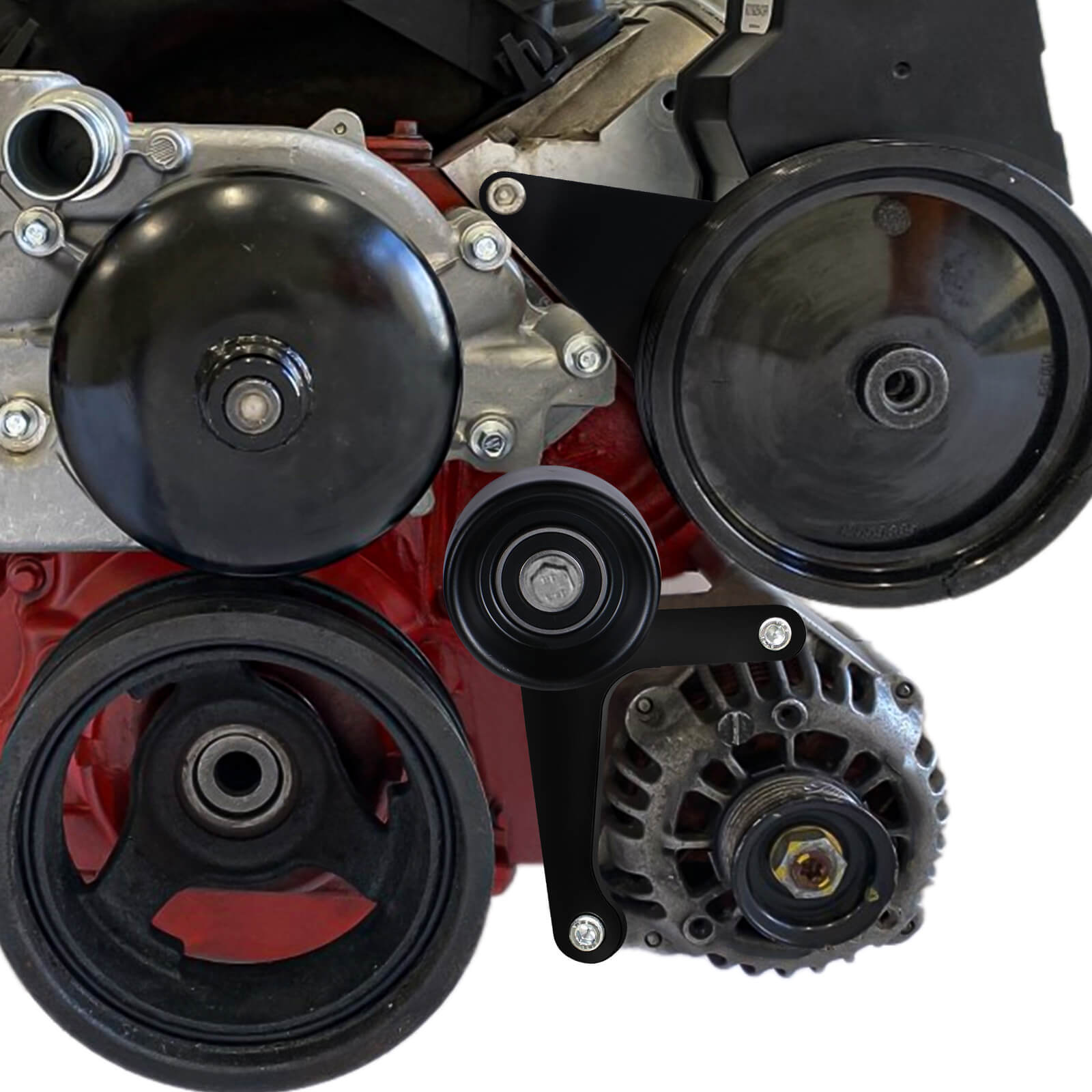

• Allow you to relocate the alternator to the driver’s side.


Specifications:

• Brand: Bevinsee
• Condition: 100% Brand new

• Bracket Material: Aluminum Alloy

• Bracket Surface: Anodized

• Processing: CNC-machined

Package Included:

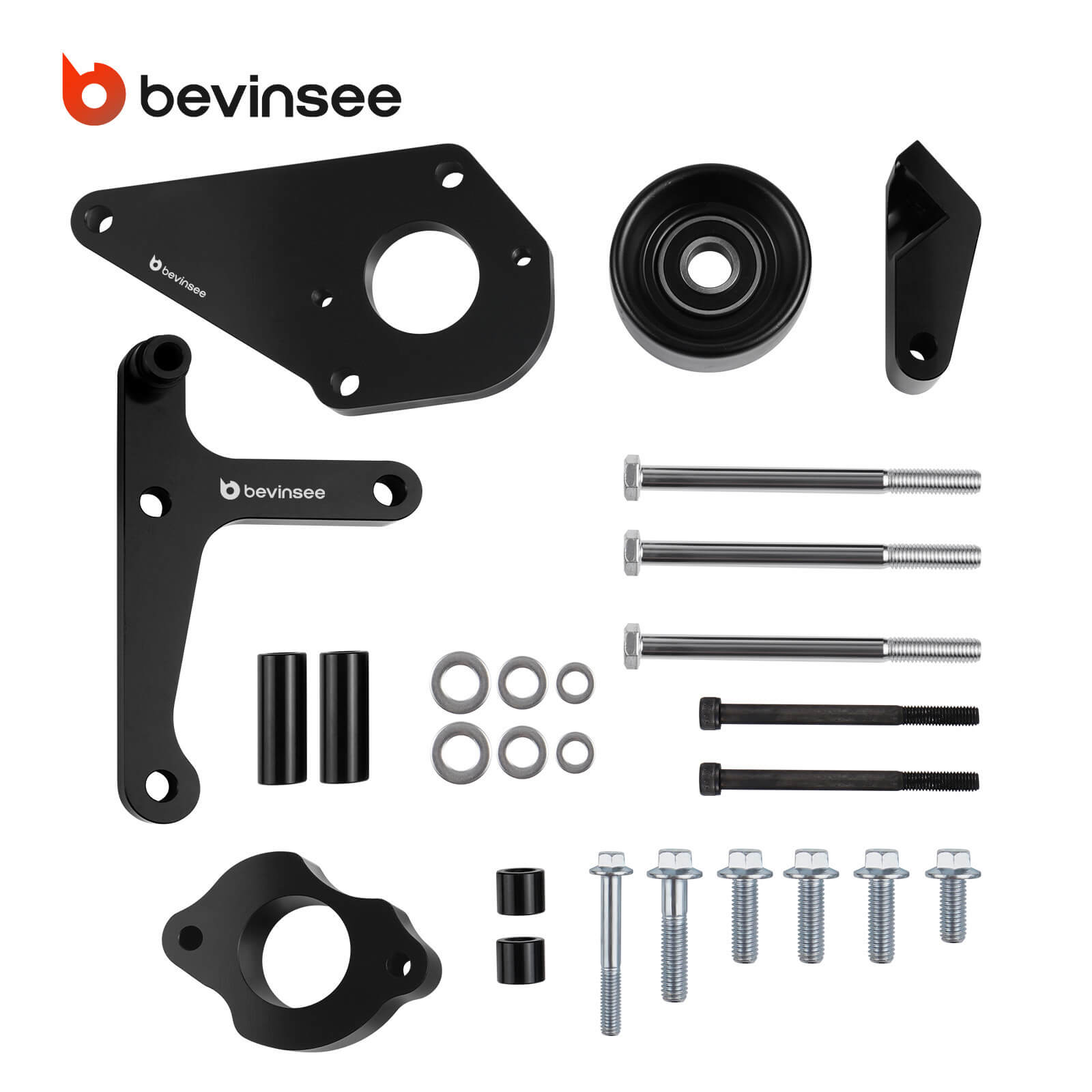

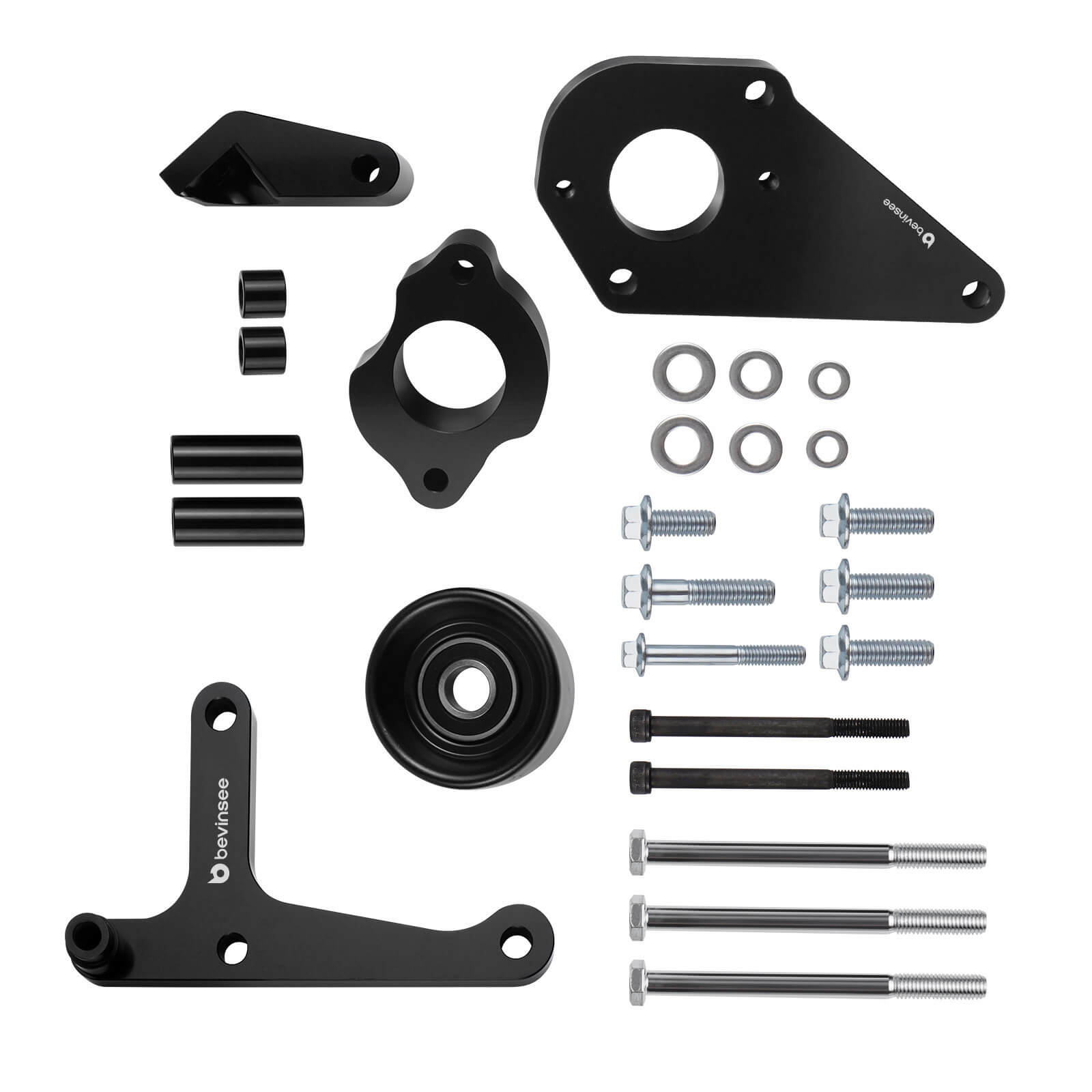

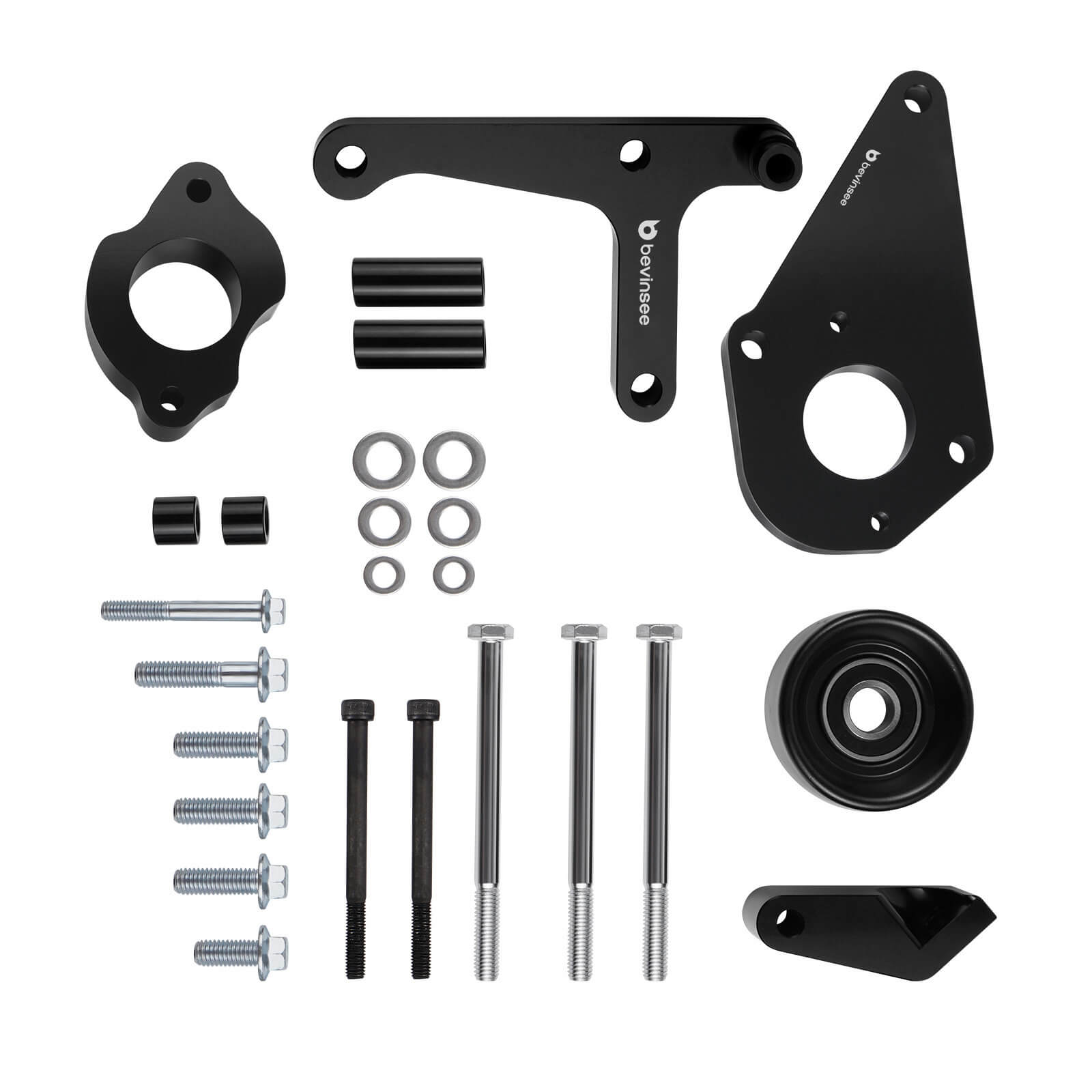

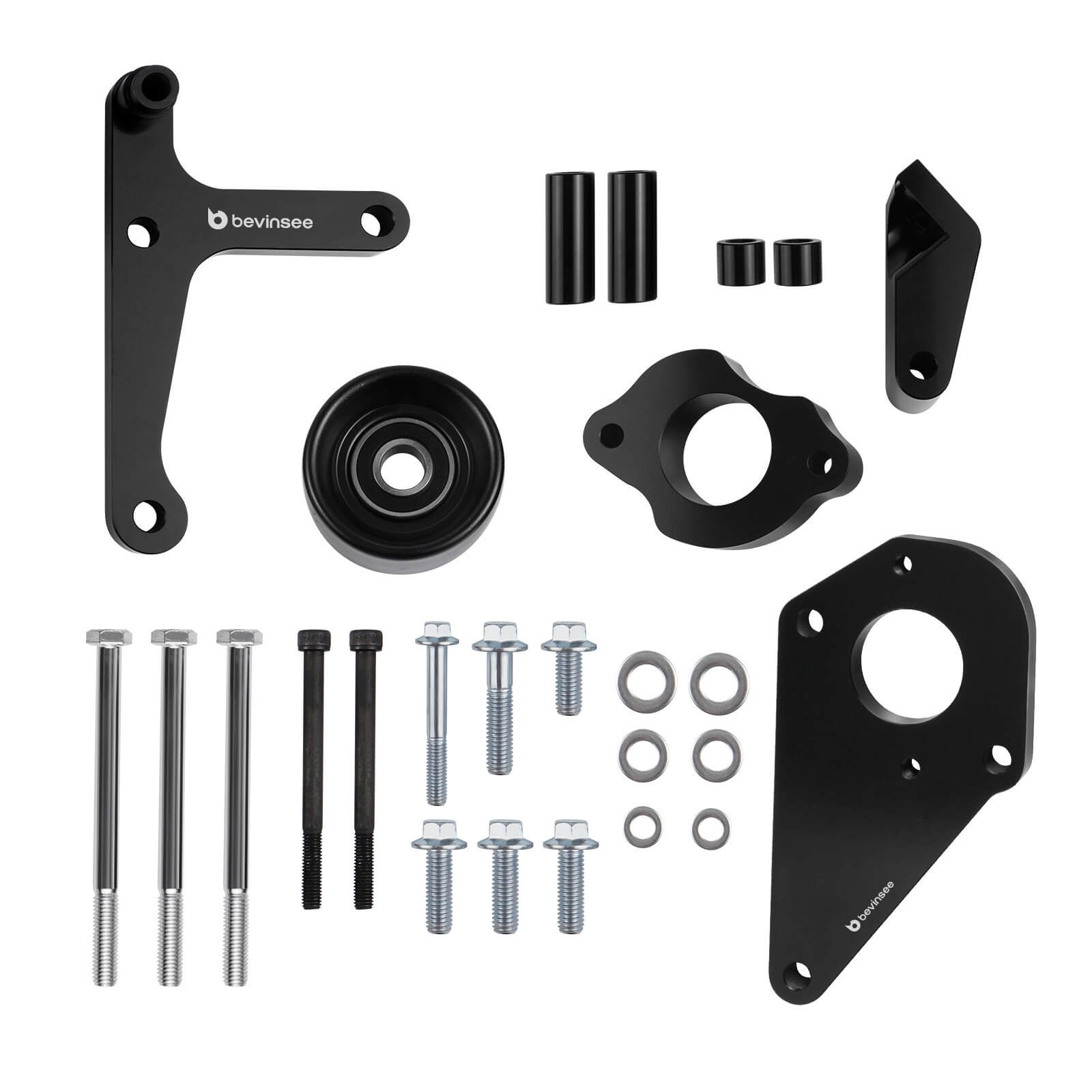

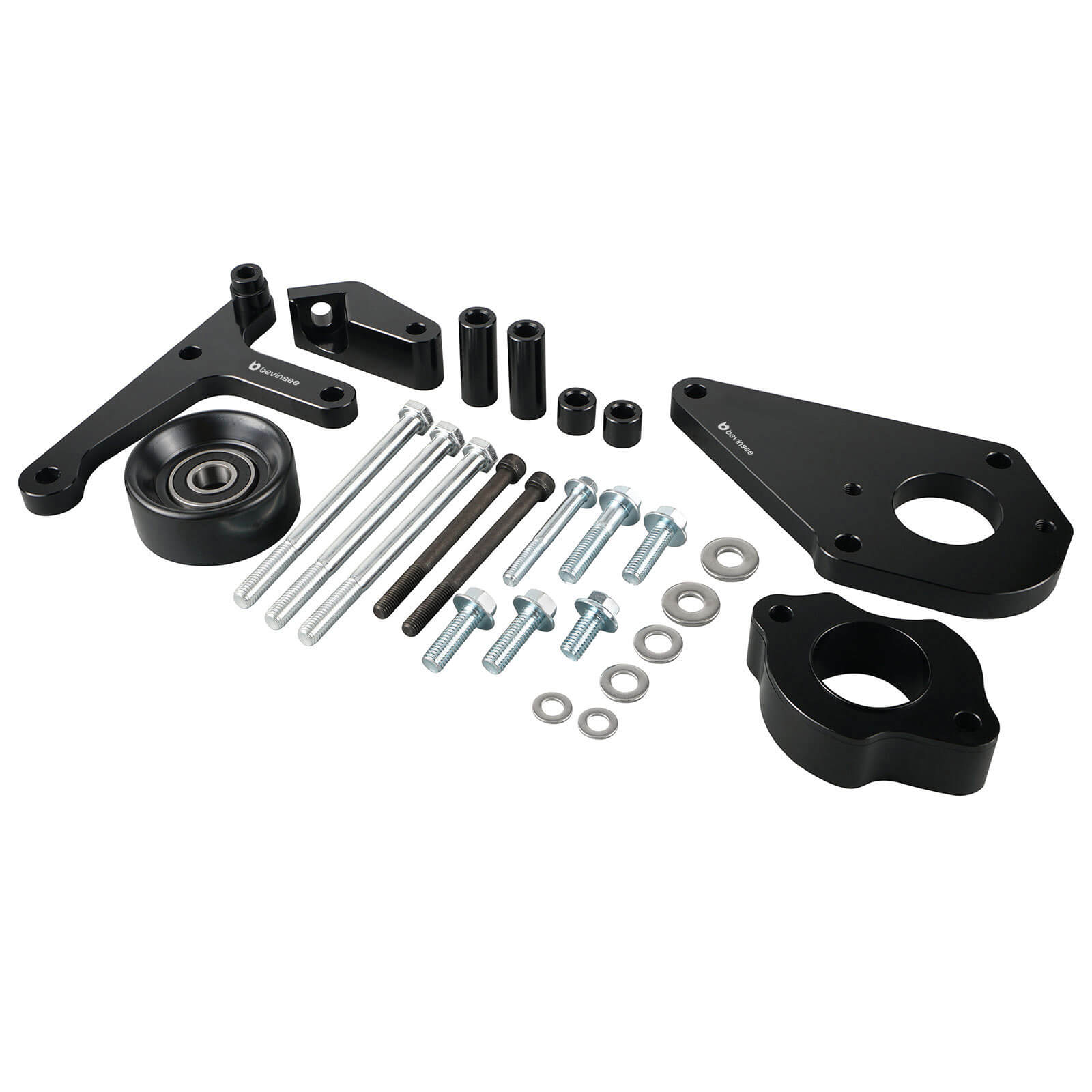

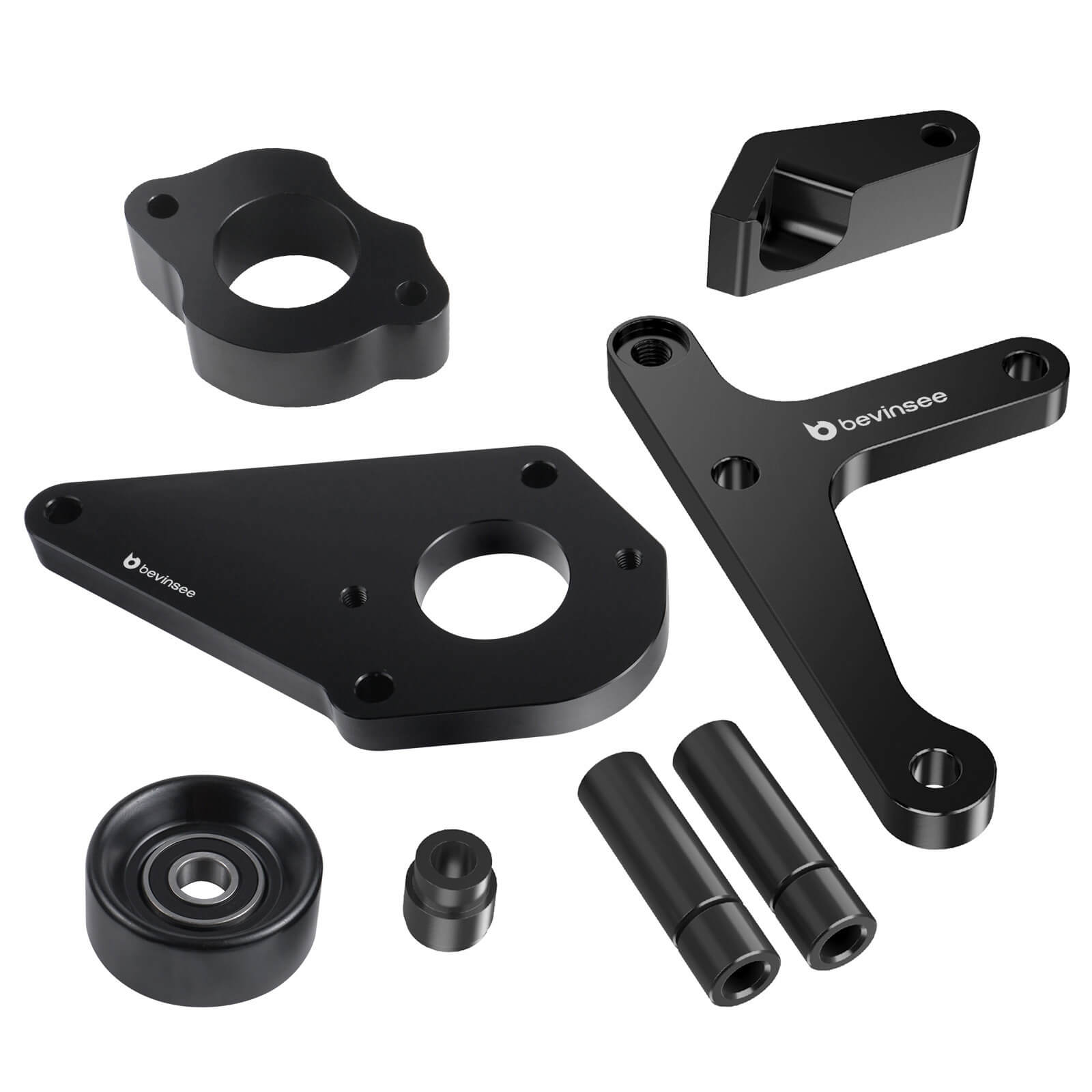

1x Power Steering & Alternator Low Mount Bracket Kit

Application:
To be used with 1998-2002 Camaro LS1 power steering pump, and alternator
Requires factory LS1 Camaro belt

Note:

1. Used with truck alternators as well, but may require 3/4 inch longer belt.

2. Can only be used on blocks with at least 2 mounting holes.

3. On truck engines with only 1 alternator mounting hole you will be required to drill and tap a 2nd M10-1.5MM hole in the engine block.

4. Will not fit for Alternators with a large bolt pattern for Corvette, CTSV, G8, or 2010 and later Camaro models.

Installation Instructions：
1.Remove the devices at the upside and underside on the driver’s side of your original vehicle.
2.Install the power steering pump bracket at the top on the driver's side, using 3 x M10x30 bolts to secure it. Then, install the new power steering pump, using 2 x M8x100 screws for fixation.
3.Install the alternator at the underside on the driver's side. Its front side should be secured by a cross-shaped bracket, using 3 x M10x130 screws for fixation. The rear side should be secured by a little aluminum piece, using 1 x M8 and 1 x M10 screw respectively. When installing, pre-assemble the alternator with all its accessories and install it as a complete unit.
4.Install back the tensioner, idler belt and other accessories. Success!
