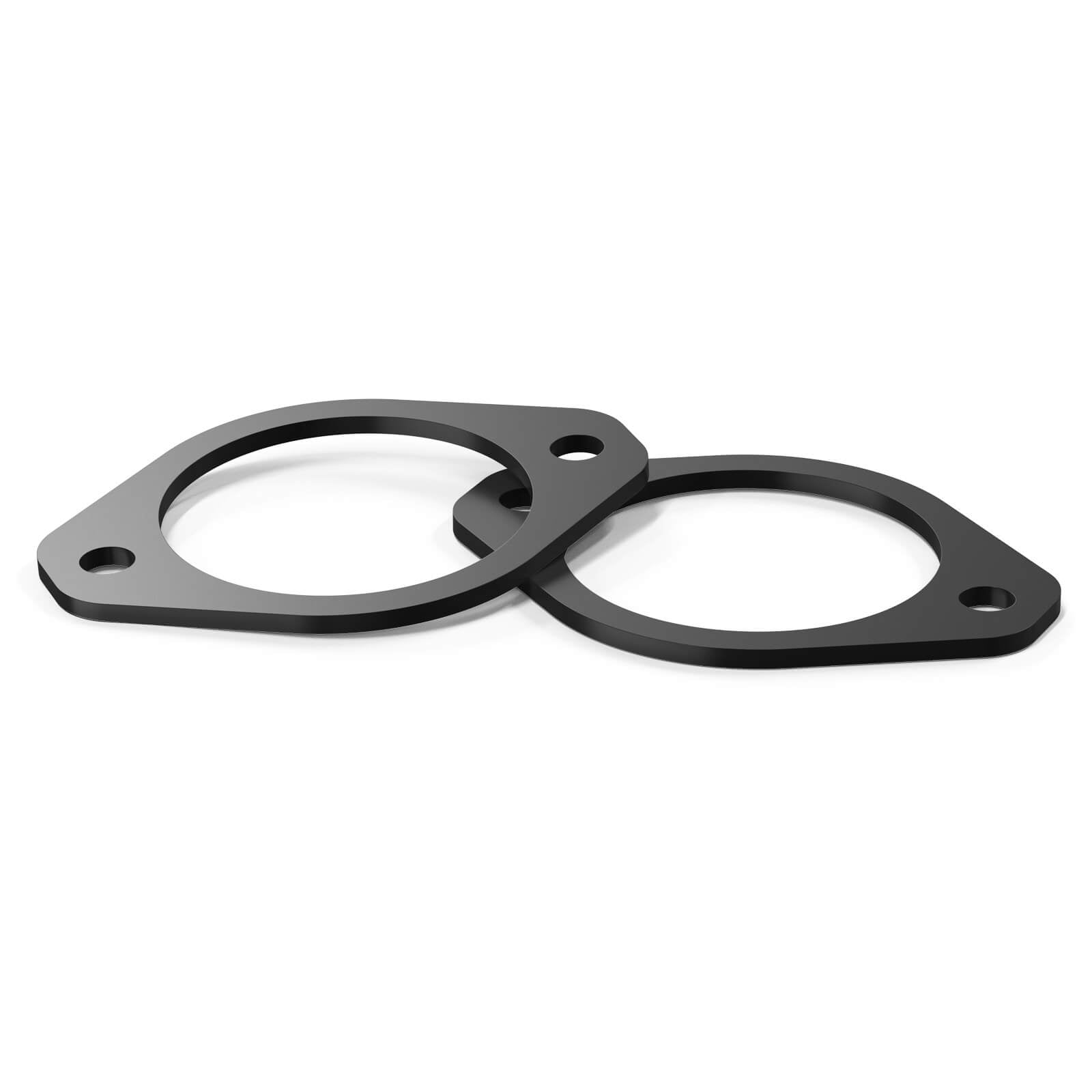

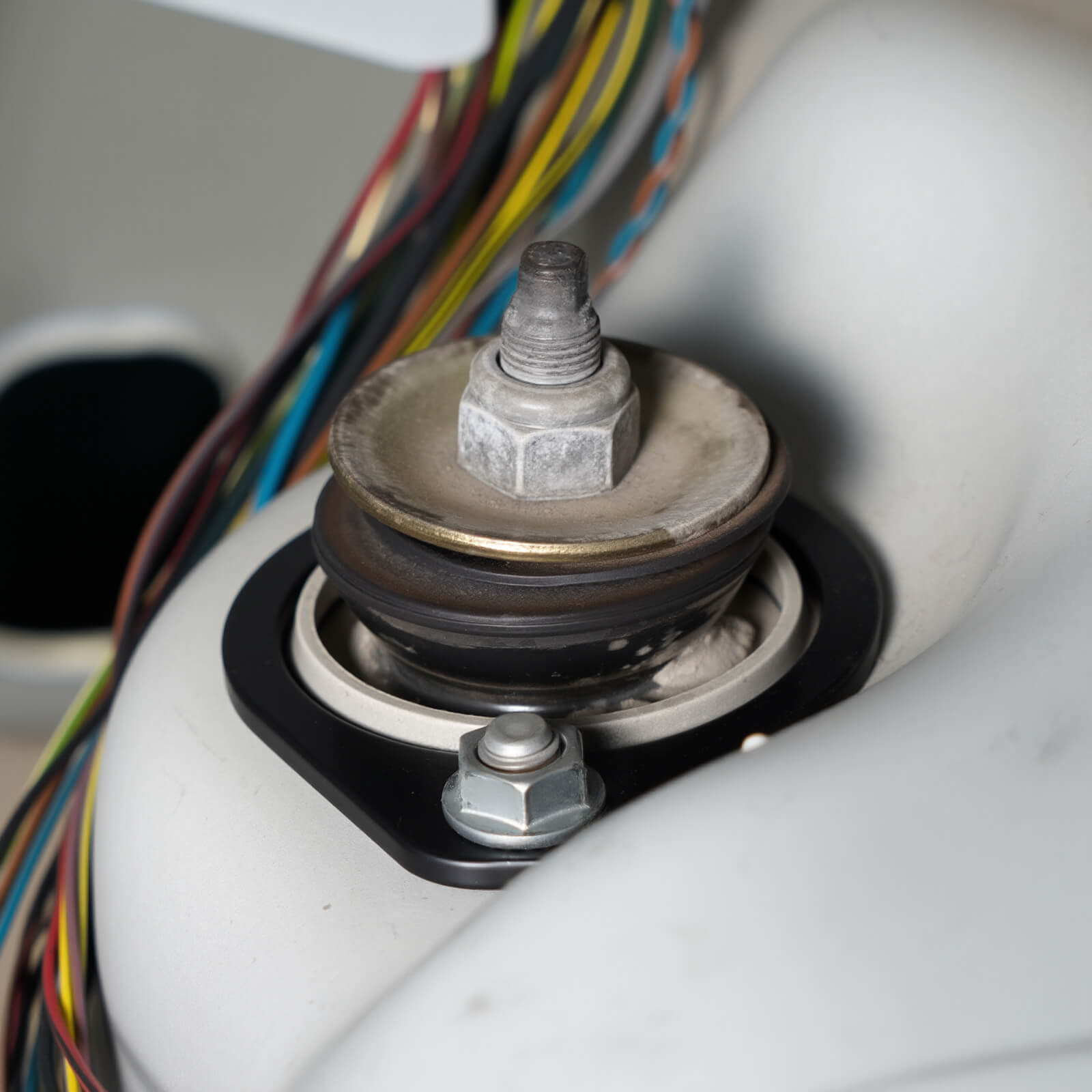

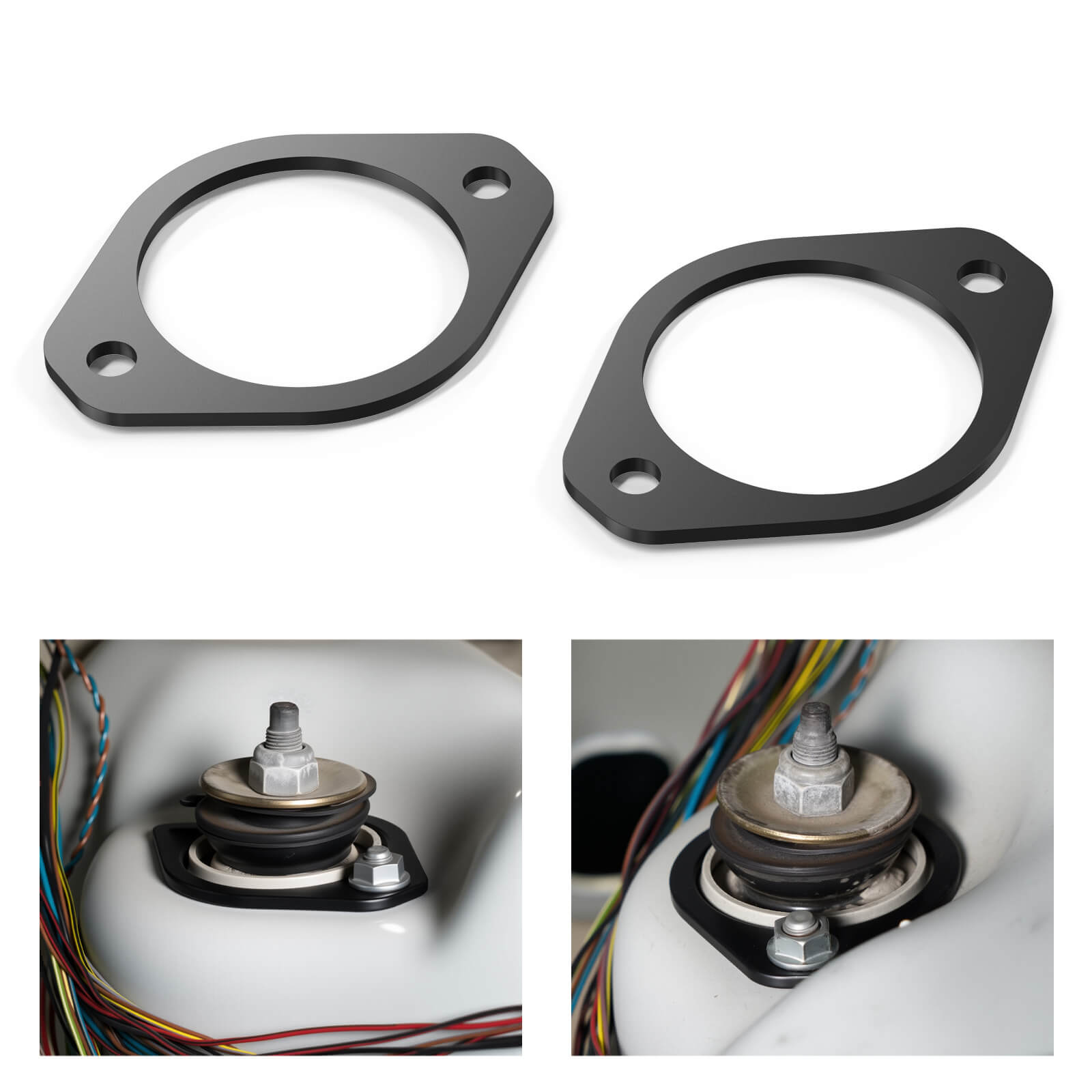

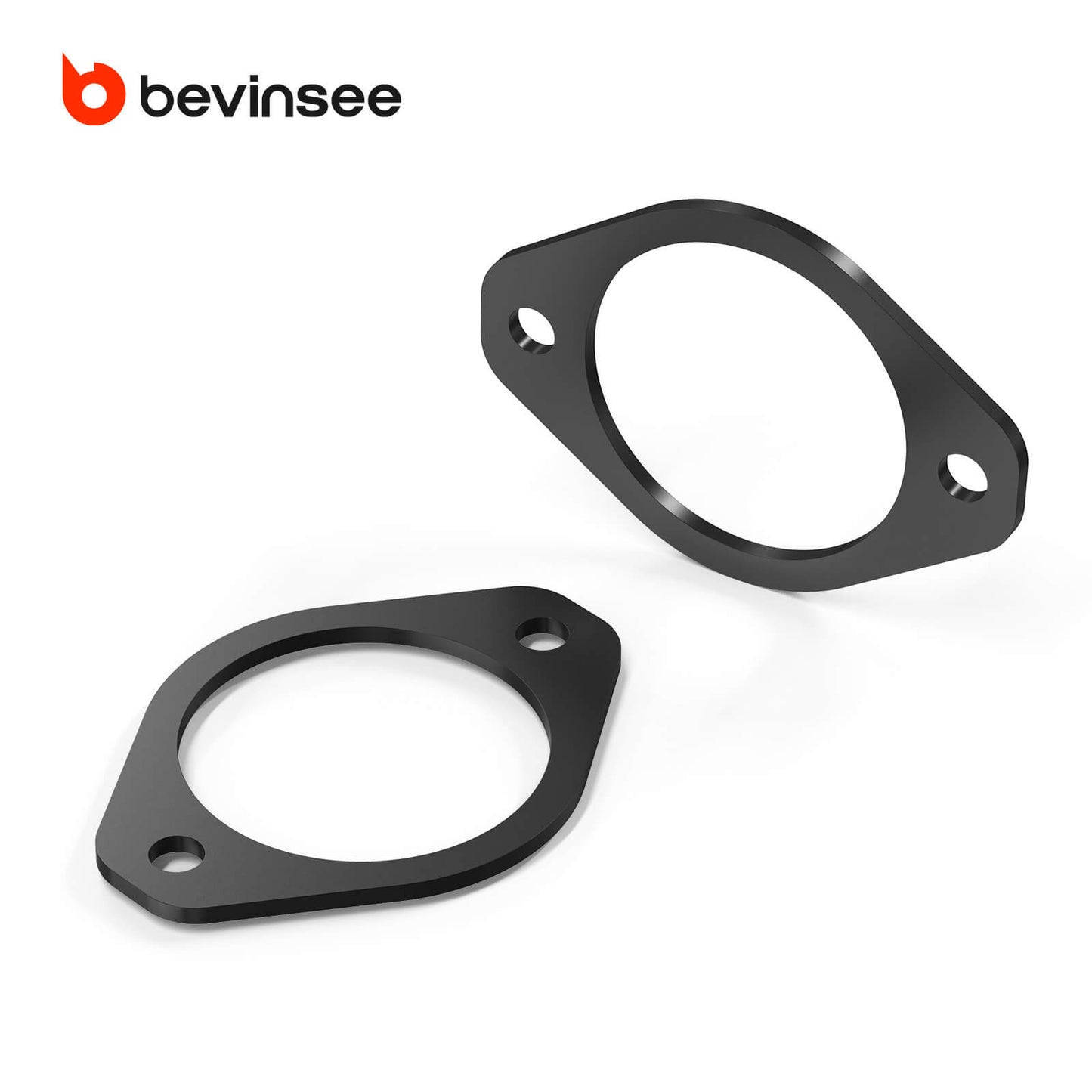

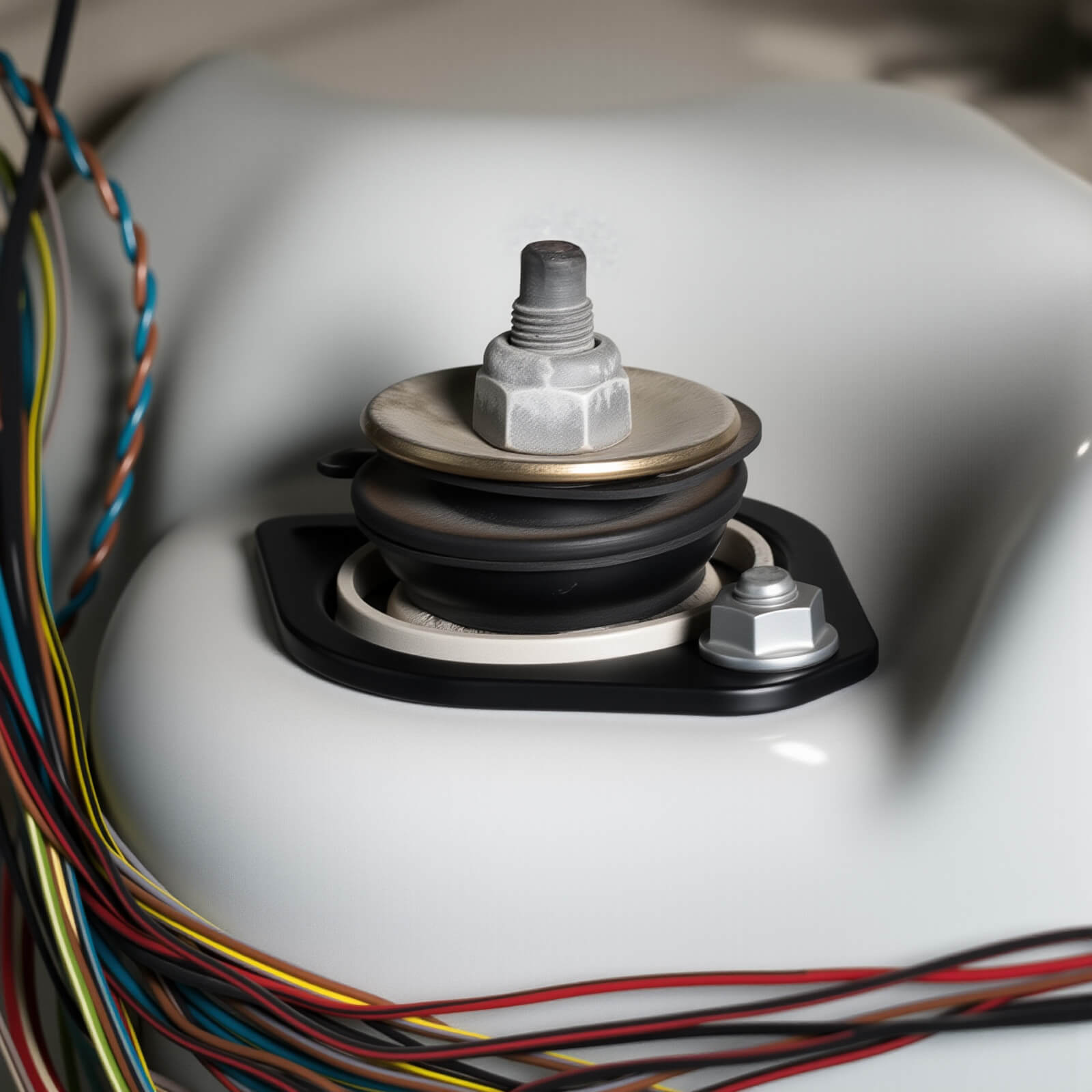

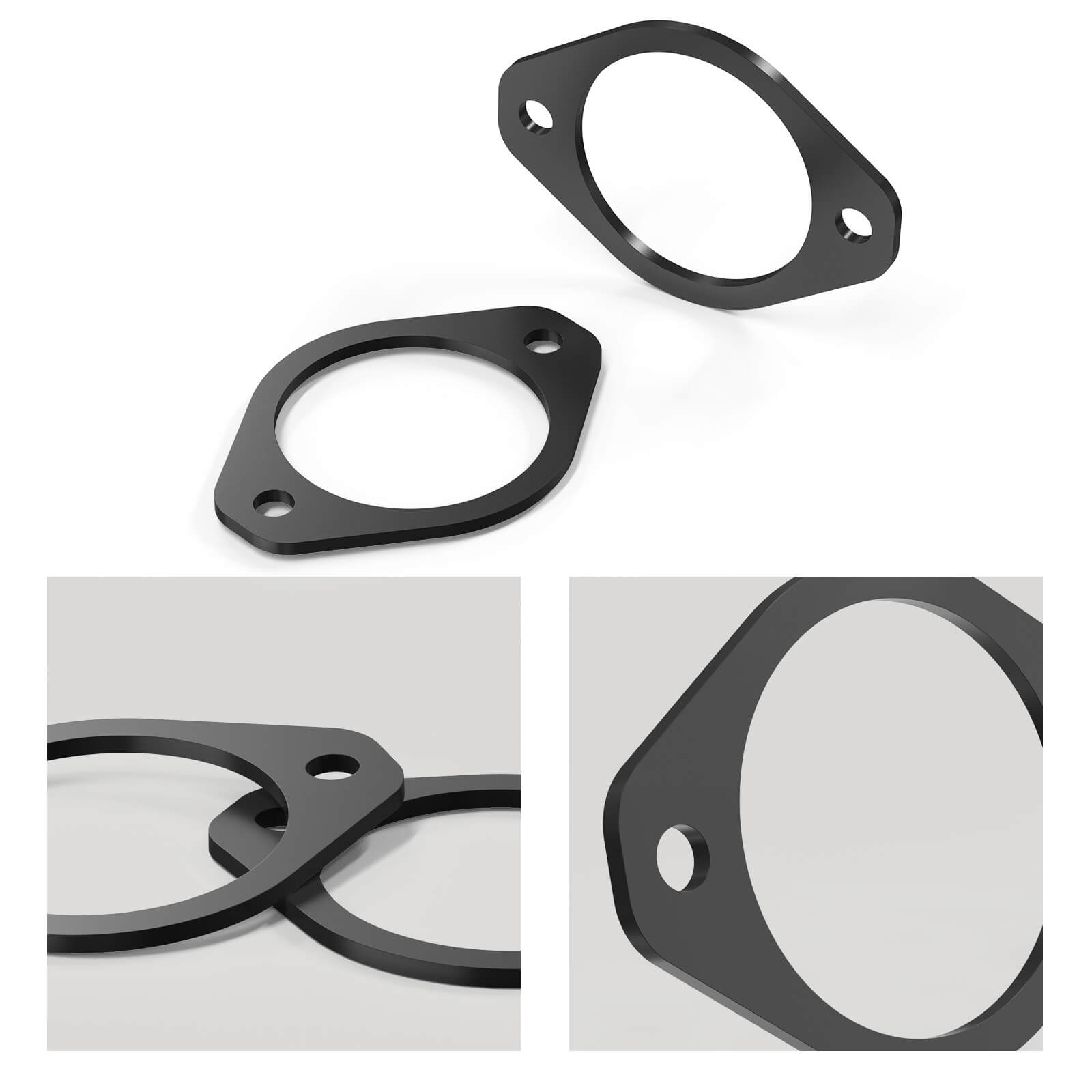

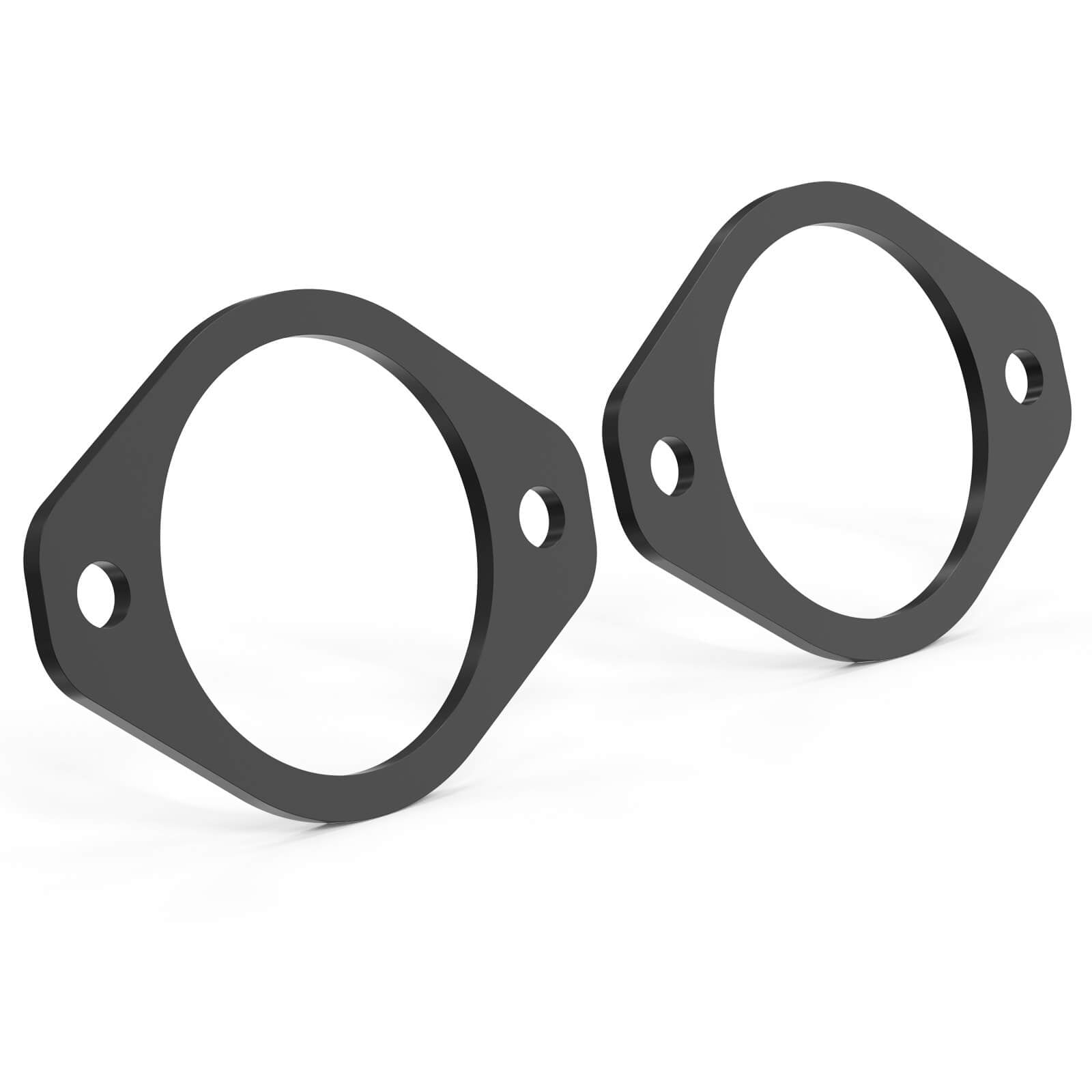

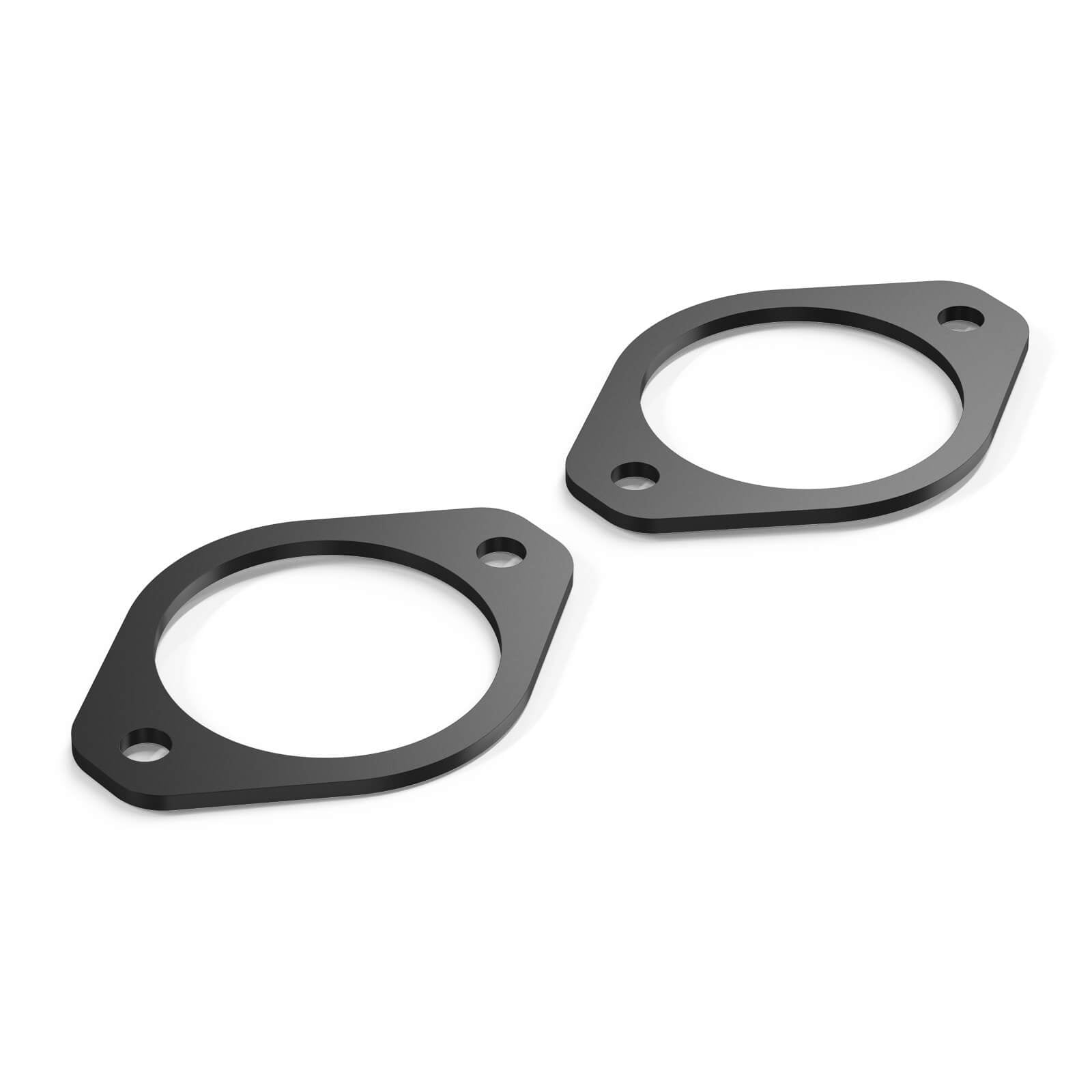

Rear Strut Tower Shock Mount Reinforcement Set For E30 E36 E46 Z4

The metal plates on top of the E30, E36, E46 rear shock towers have a well-known weakness: the metal is prone to tearing over time, especially when subjected to strong impacts.
It is the best insurance for the shock mount to install the NICECNC shock mount reinforcement to avoid repairing expensive shock mounts in the future!

Features:

• 【3mm High Strength Steel】Sturdy and durable, efficient reinforcement, prevent tearing.

• 【Bolt-on type】Compared to stock, it can also be quickly installed / removed.

• 【Perfect fit】CNC machined, high Accuracy.

• 【Value for money】That old saying - "you get what you pay for" could not be more readily applied here!

Specification:

• Brand:BEVINSEE
• Condition: New

• Type: Rear Shock Mount Reinforcements

• Material: High Strength Steel

• Surface Finished: Powder Coating

• Hardness: 85ShA
• Shock Shaft Diameter: 10mm
• NVH Increase: Low
• Replacement Part Number: 33526772864

Include:2 plates

Note: We recommend use a little threadlocker on the 2 bolts to make sure they don't get loose.

Fitment:

• Reinforcement Plate:

For BMW E30 1986-1991 318 323 325
For BMW E36 1992-1999 318 323 325 328 M3
For BMW E46 1999-2006 323 325 328 330 M3 (Not Convertible)
For BMW Z3 E36/8 1996-2003 2.0, 2.3, 2.5, 3.0L
For BMW Z4 E86 2003-2008 2.5, 3.0L (Not Convertible)

• Complete Shock Mounting Kit:

For BMW E30 1986-1991 318 323 325
For BMW E36 1992-1999 323 325 328 M3
For BMW E46 1999-2006 323 325 328 330 M3 (Not Convertible)
For BMW Z3 E36/8 1996-2003 2.0, 2.3, 2.5, 3.0L
For BMW Z4 E86 2003-2008 2.5, 3.0L (Not Convertible)
Note:Not Fit For BMW E36/E46 318TI

Fitment Note:

We found that the factory E30 M3 had too much seam sealant near and around the top of the rear shock mounting area, causing the reinforcement plate to not lie completely flat.
Please modify the plates to accommodate the manufacturing tolerances of these specific models.

The 10mm/12mm sizing refers to the inner diameter of the shock mount sleeve. The size of your shock dictates which size you need (OEM is 10mm; aftermarket shocks vary and must be measured). If you aren¡¯t sure which size you need, measure the OD of the top threaded portion of the shock, or check with the manufacturer.

10mm (shock shaft diameter) fits standard shocks and some coilover systems such as for BMW OEM Shocks,For Bilstein PSS9/PSS10.For H&R Coilovers,For FK Coilovers,For Raceland,For ST Coilovers,For KW V1, V2, V3,For Koni Sport/Dinan and For All AST 4XXX/5XXX Series .
12mm fits racing coilovers such as for Tein£¨some), For MCS, for JRZ, For Ohlins and For TC Kline S/A or D/A. Does NOT fit convertible models.
